BIOBASE Class III Biological Safety Cabinet – BSC-1500IIIX-H Fully Enclosed Negative-Pressure Glovebox with Pass Box, Touchscreen Control and ULPA Filtration

No reviews yet Write a Review
SKU:
TH-BSC-1500IIIX-H-220V
MPN:
BSC-1500IIIX-H (220V)
Weight:
1,158.22 LBS
Availability: 21-30 Days ETA.

Frequently Bought Together:

Description

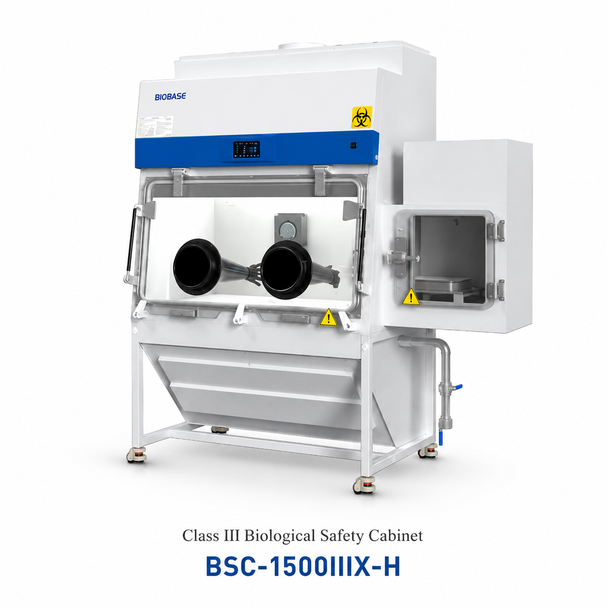

The BIOBASE BSC-1500IIIX-H Class III Biological Safety Cabinet is a fully enclosed, gas-tight laboratory containment cabinet designed for handling materials requiring a high level of personnel, product, and environmental protection. The cabinet maintains a negative-pressure work chamber and allows operators to manipulate materials through integrated long-cuff butyl rubber gloves without direct exposure to the internal workspace.

The cabinet features a 7-inch color touchscreen, power-off memory, real-time operating data, visual and audible alarms, and password-controlled management functions. Its working area is constructed from integrated 304 stainless steel with rounded internal corners for easier cleaning and decontamination.

A side-mounted transfer pass box uses an independent negative-pressure cycle structure and an interlocking door system to help prevent both doors from being opened simultaneously. Multiple ULPA filtration stages serve the operating area, cabinet exhaust, top exhaust, and pass-box air supply. The cabinet also includes ultraviolet decontamination lamps, LED work lighting, a washable pre-filter, and a 12 mm tempered-glass viewing window with anti-ultraviolet protection.

According to the manufacturer’s specification sheet, the BSC-1500IIIX-H measures 1920 × 950 × 2180 mm externally, provides a 1170 × 640 × 600 mm internal working area, and has an approximate packed gross weight of 480 kg / 1,058 lb.

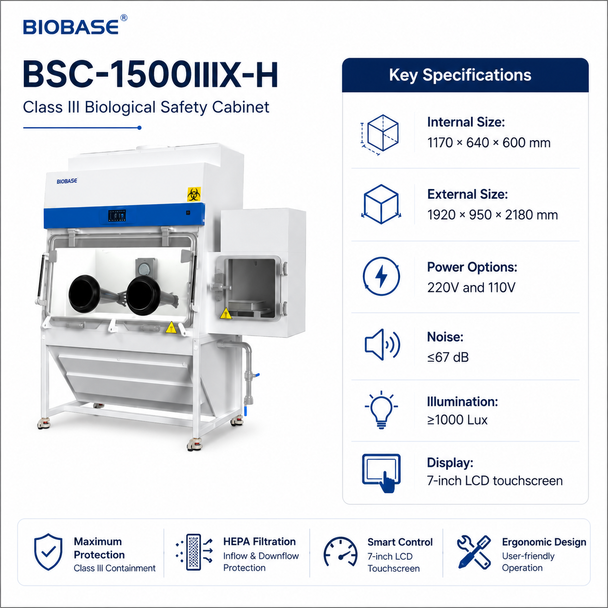

Key Specifications

  • Cabinet classification: Class III biological safety cabinet
  • Containment design: Fully enclosed negative-pressure glovebox
  • Negative pressure: ≥120 Pa
  • Control system: 7-inch color touchscreen LCD
  • Work-zone material: 304 stainless steel
  • Front window: 12 mm tempered glass with anti-UV protection
  • Gloves: One pair of 800 mm butyl rubber gloves
  • Pass-box size: 580 × 440 × 560 mm
  • Internal dimensions: 1170 × 640 × 600 mm
  • External dimensions: 1920 × 950 × 2180 mm
  • Filtration: Multiple ULPA filters rated at 99.9995% efficiency at 0.12 μm
  • Noise level: ≤67 dB
  • Illumination: ≥1000 lux
  • Power consumption: 1300 W
  • Packed dimensions: 2060 × 1100 × 2350 mm
  • Approximate gross weight: 480 kg / 1,058 lb



Warranty

5-Year Limited Equipment Warranty Covered Equipment: BIOBASE Class III Biological Safety Cabinet Model: BSC-1500IIIX-H Warranty Term: Five years from the documented date of delivery The BIOBASE BSC-1500IIIX-H Class III Biological Safety Cabinet is covered by a five-year limited distributor warranty against defects in materials and workmanship under normal laboratory use, proper installation, and operation in accordance with the manufacturer’s instructions. Warranty Coverage Years 1–2: Parts and Labor During the first two years, the warranty covers eligible replacement parts, remote technical support, diagnostic assistance, and reasonable labor required to repair defects determined to result from faulty materials or workmanship. Years 3–5: Parts Coverage During years three through five, the warranty covers eligible replacement parts required to correct verified manufacturing defects. Shipping, customs charges, travel, on-site labor, installation, calibration, certification, decontamination, and related service expenses are not included unless specifically stated in the sales contract. Covered components may include: Touchscreen display and electronic control system Factory-installed motors, blowers, sensors, alarms, and control boards Cabinet electrical components and internal wiring Pass-box interlock mechanisms Factory-installed LED and ultraviolet lamp assemblies, excluding consumable lamps Structural cabinet components Factory-installed filtration housings and airflow-control components Consumable and Wear Items The following are considered consumable or maintenance items and are not covered unless they are defective upon delivery: ULPA filters and pre-filters Butyl rubber gloves and glove sleeves UV lamps and LED lamps Gaskets, seals, fuses, switches, and disposable accessories Glass damaged after delivery Cleaning, decontamination, calibration, testing, and certification services Warranty Conditions Warranty coverage requires that the equipment: Be installed by qualified personnel in accordance with site and electrical requirements Be operated only by trained users Receive routine preventive maintenance Be used with the specified electrical supply Not be modified, relocated, dismantled, or repaired by unauthorized personnel Be properly decontaminated before inspection, service, or return Have its model number, serial number, installation record, and maintenance history available when a claim is submitted Exclusions This warranty does not cover damage resulting from improper installation, misuse, contamination, corrosion, chemical exposure, accidental damage, unauthorized modification, inadequate ventilation, voltage fluctuation, power surge, natural disaster, freight damage reported after the carrier claim period, failure to perform required maintenance, or use outside the cabinet’s intended laboratory application. The warranty also excludes loss of samples, loss of research materials, downtime, lost revenue, substitute equipment, third-party testing, regulatory certification, and other indirect or consequential losses. Warranty Claim Procedure Warranty claims must include: Equipment model and serial number Original invoice or proof of purchase Delivery and installation date Description of the reported issue Photographs, videos, alarm codes, or diagnostic information Maintenance and service records, when requested Following technical review, the distributor may provide troubleshooting assistance, authorize replacement parts, arrange repair service, or replace the affected component or equipment at its discretion. Limitation of Remedy The exclusive remedy under this warranty is the repair or replacement of eligible defective parts or equipment. Replacement components may be new or functionally equivalent. Any replacement equipment or component remains covered for the balance of the original five-year warranty term. Important: This is a distributor-created limited warranty for the product listing and does not represent a manufacturer-issued five-year warranty unless separately confirmed in writing by BIOBASE or incorporated into the final purchase agreement.
