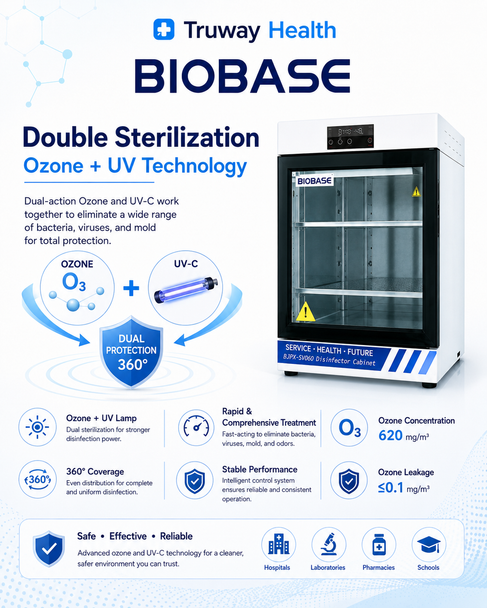

The BIOBASE BJPX-SVO Series Ozone UV Sterilization Cabinet combines ozone treatment with ultraviolet lamp technology in an enclosed cabinet designed for the treatment of compatible articles that may not tolerate high-temperature sterilization processes.

The system incorporates automatic operating controls, adjustable sterilization timing, stainless-steel internal working surfaces, adjustable shelving, and an enclosed cabinet architecture suitable for professional, institutional, commercial, laboratory, hospitality, educational, production, and other controlled-use environments.

The BJPX-SVO platform is available in 70-liter and 90-liter configurations, allowing customers to select the cabinet size appropriate for their workflow and throughput requirements.

Key Features

Dual Ozone + UV Treatment

Uses a combined ozone and UV lamp sterilization method to provide broad internal exposure throughout the cabinet chamber.

Automated PID Control

Integrated PID control system supports controlled operation and programmable sterilization cycles.

Adjustable Sterilization Time

The cabinet provides adjustable cycle timing and is designed to shut down automatically after completion of the selected sterilization process.

Adjustable Shelving

Supplied with two standard shelves, with shelving positions configurable to accommodate different article sizes.

Stainless-Steel Working Zone

The internal working area is manufactured from 201 stainless steel, 1.0 mm thick, supporting durability and corrosion resistance.

Coated Exterior Construction

Main cabinet body is manufactured from cold-rolled steel with protective coating.

Low Power Consumption

Manufacturer-rated electrical consumption is approximately 8 W.

110V Configuration

This Truway Health configuration is offered for 110V operation. Manufacturer literature identifies AC110V, 50/60 Hz as an optional electrical configuration using an external transformer.

Manufacturer-Stated Applications

The cabinet is intended for compatible items that are not resistant to high-temperature treatment, including examples such as:

• Glass and enamel cups
• Plastics
• Ceramics
• Machinery and equipment components
• Production supplies
• Non-woven fabrics
• Composite paper products
• Packaging boxes and bags
• Appliances
• Cleaning appliances
• Molds
• Tableware
• Containers
• Towels
• Work clothing
• Shoes
• Packaging materials
• Raw materials
• Other compatible solid articles

Manufacturer literature identifies potential use environments including banks, hotels, restaurants, schools, production workshops, hygiene-related facilities, public-use areas, and similar environments requiring enclosed article treatment.

Technical Specifications

BJPX-SVO60

Manufacturer Model: BJPX-SVO60
Nominal Capacity: 70 L
Sterilization Method: Ozone + UV Lamp
Ozone Concentration: 620 mg/m³
Manufacturer-Stated Ozone Leakage: ≤0.1 mg/m³
Control System: PID
Power Consumption: 8 W
Electrical Configuration: 110V / 50–60 Hz configuration
Standard Shelves: 2
Shelf Size: 386 × 394 mm
Internal Dimensions (W × D × H): 398 × 398 × 452 mm
External Dimensions (W × D × H): 495 × 501 × 760 mm
Net Weight: 35 kg / approximately 77.2 lb
Packaged Dimensions (W × D × H): 620 × 620 × 860 mm
Gross Shipping Weight: 50 kg / approximately 110.2 lb

Truway Health Price

$22,411.00 USD

BJPX-SVO80

Manufacturer Model: BJPX-SVO80
Nominal Capacity: 90 L
Sterilization Method: Ozone + UV Lamp
Ozone Concentration: 620 mg/m³
Manufacturer-Stated Ozone Leakage: ≤0.1 mg/m³
Control System: PID
Power Consumption: 8 W
Electrical Configuration: 110V / 50–60 Hz configuration
Standard Shelves: 2
Shelf Size: 478 × 394 mm
Internal Dimensions (W × D × H): 398 × 498 × 452 mm
External Dimensions (W × D × H): 495 × 601 × 760 mm
Net Weight: 40 kg / approximately 88.2 lb
Packaged Dimensions (W × D × H): 726 × 620 × 860 mm
Gross Shipping Weight: 55 kg / approximately 121.3 lb

Truway Health Price

$24,893.00 USD

Operating Conditions

Manufacturer-specified operating environment:

• Ambient Temperature: 5°C–40°C
• Relative Humidity: ≤85%
• Atmospheric Pressure: 70–106 kPa
• Environment should contain no flammable, corrosive, or conductive dust
• Maximum Operating Altitude: Below 2,000 meters

Standard Accessories

Each cabinet includes manufacturer-standard equipment consisting of:

• 2 shelves
• 1 UV lamp

Manufacturer-Stated Microbiological Performance Parameters

BIOBASE literature identifies evaluation against organisms including:

• Staphylococcus aureus
• Candida albicans
• Pseudomonas aeruginosa
• Natural bacteria

Manufacturer documentation states a target log kill value greater than 3.00 at each evaluation point under its specified test parameters.

Variant Options

Variant 1 — BJPX-SVO60

70 L | 110V | 2 Shelves
Price: $22,411.00

Variant 2 — BJPX-SVO80

90 L | 110V | 2 Shelves
Price: $24,893.00
