Product Overview

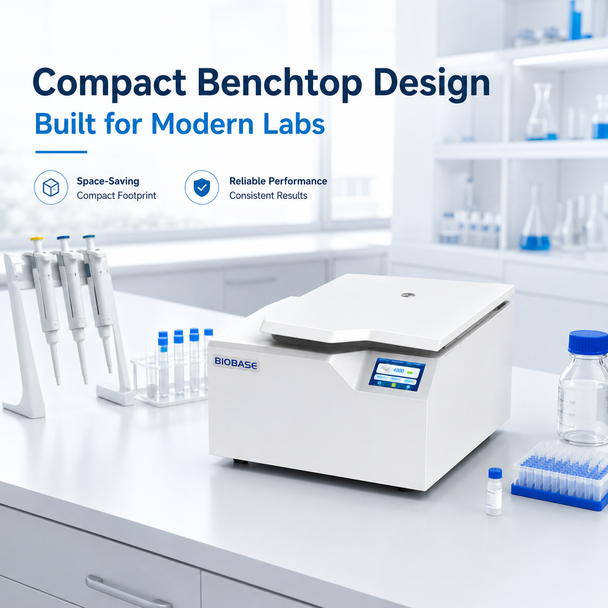

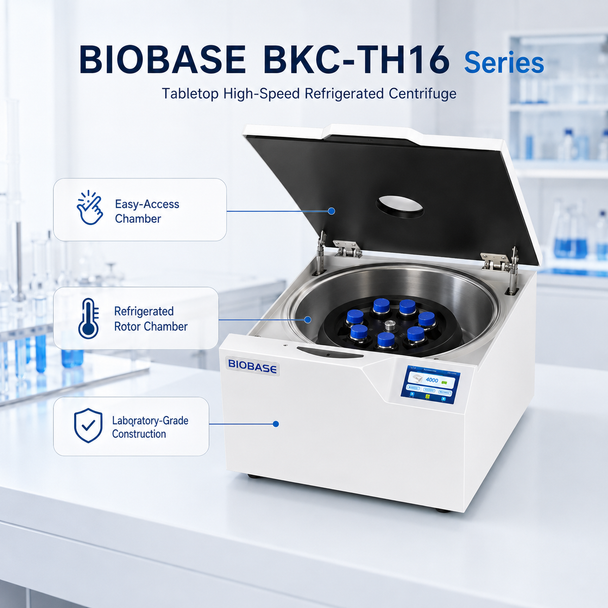

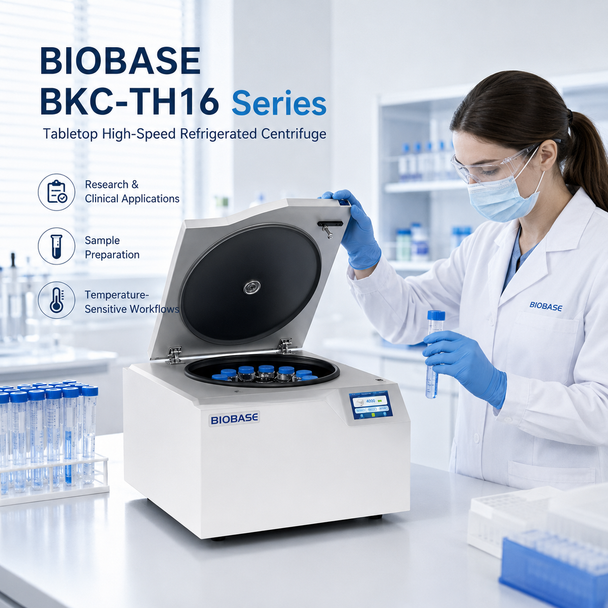

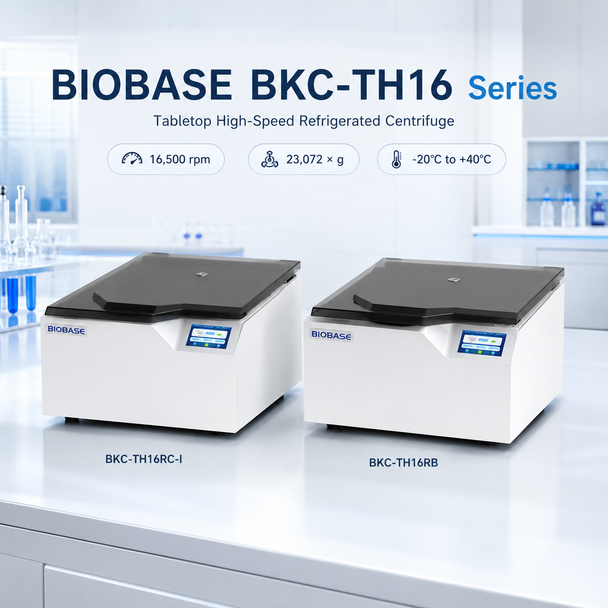

The BIOBASE BKC-TH16 Series Tabletop High-Speed Refrigerated Centrifuge combines high-speed sample separation, active refrigeration, programmable operation and a configurable rotor platform in a compact benchtop system.
Both models reach a maximum speed of 16,500 rpm and a maximum relative centrifugal force of 23,072 × g. The refrigerated chamber provides an adjustable operating range from -20°C to +40°C, supporting temperature-sensitive laboratory workflows before, during and between centrifugation cycles.
The BKC-TH16RC-I is designed for broader tube-format flexibility and supports selected containers ranging from microtubes up to 100 mL, depending on the installed rotor and adapter. The BKC-TH16RB is optimized for smaller-volume workflows using tube formats up to 10 mL. The manufacturer’s datasheet lists multiple angle and swing-out rotor configurations for both variants.
Key Features
- Maximum rotational speed of 16,500 rpm
- Maximum RCF of 23,072 × g
- Refrigerated operating range from -20°C to +40°C
- Temperature accuracy of ±1°C
- Speed accuracy of ±20 rpm
- Five-inch LCD touchscreen control interface
- Real-time display of operating parameters
- Chinese and English interface switching
- Additional interface languages may be customized
- Embedded microprocessor control
- Maintenance-free DC brushless motor
- Programmable timed, continuous and short-span operation
- Multiple user-defined programs
- Automatic recall of the most recently used program

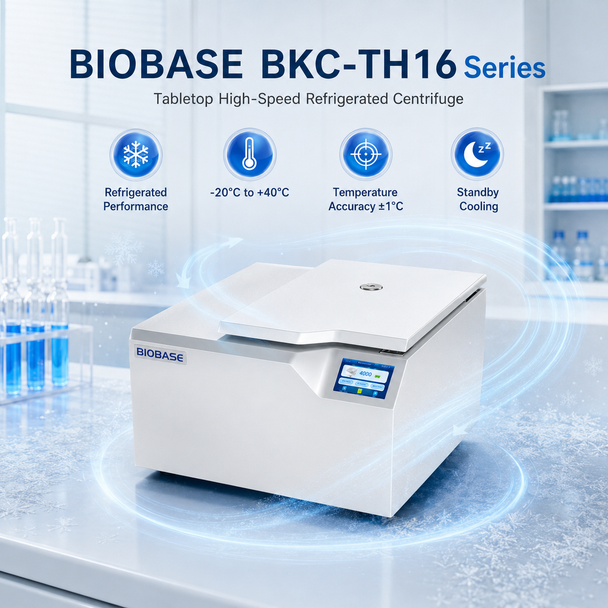

- Standby cooling maintains the selected chamber temperature
- CFC-free compressor using R404a refrigerant
- Electromechanical door-locking system
- Multi-layer, explosion-resistant metal construction
- Food-grade silicone chamber seal designed to reduce aerosol escape
- Self-test, blockage, overspeed and overtemperature alarms
- Integrated shock-absorption system for smooth operation
- Optional automatic rotor recognition
- Configurable angle and swing-out rotor options

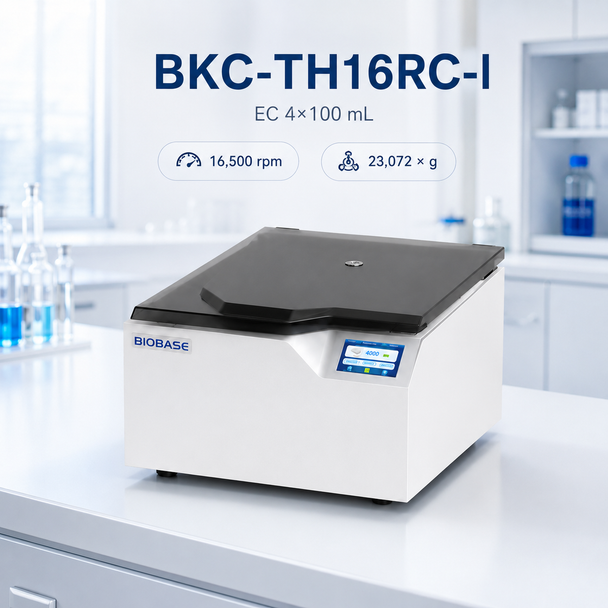

Variant 1: BKC-TH16RC-I
Extended-Capacity Refrigerated Centrifuge
Truway Health Price: $141,290.00
Model / MPN: BKC-TH16RC-I
SKU: TWH-BIO-BKCTH16RCI-110
The BKC-TH16RC-I provides the most extensive rotor and container flexibility in the series. Depending on the selected rotor and adapter package, the system supports microcentrifuge tubes, blood collection tubes, capillary tubes and larger laboratory containers up to a maximum nominal configuration of 4 × 100 mL.
Suitable Workflows
- General clinical laboratory centrifugation
- Research sample preparation
- Blood and plasma processing
- Serum separation
- Molecular biology workflows
- Cell and tissue sample preparation
- Microtube and larger-volume tube processing
- Temperature-sensitive sample separation
- Multi-purpose laboratory centrifugation

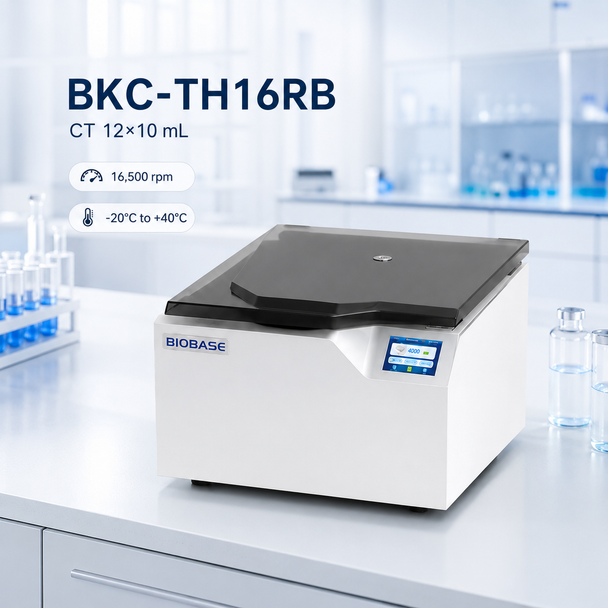

Variant 2: BKC-TH16RB
Compact-Tube Refrigerated Centrifuge
Truway Health Price: $131,350.00
Model / MPN: BKC-TH16RB
SKU: TWH-BIO-BKCTH16RB-110
The BKC-TH16RB is configured for compact-tube laboratory workflows. It supports selected microtube and small laboratory-tube formats, with a maximum nominal capacity of 12 × 10 mL, depending on the installed rotor and adapter.
Suitable Workflows
- Microbiology laboratories
- Clinical sample preparation
- Molecular biology
- Small-volume blood sample processing
- DNA and RNA preparation workflows
- Protein and reagent separation
- Research and educational laboratories
- Temperature-controlled microtube centrifugation
Technical Specifications
| Specification | BKC-TH16RC-I | BKC-TH16RB |
|---|---|---|
| Maximum speed | 16,500 rpm | 16,500 rpm |
| Speed accuracy | ±20 rpm | ±20 rpm |
| Maximum RCF | 23,072 × g | 23,072 × g |
| Maximum nominal volume | 4 × 100 mL | 12 × 10 mL |
| Refrigeration system | CFC-free compressor, R404a | CFC-free compressor, R404a |
| Temperature range | -20°C to +40°C | -20°C to +40°C |
| Temperature accuracy | ±1°C | ±1°C |
| Timing range | 1 sec-99 hr 59 min; continuous; short-span | 1 sec-99 hr 59 min; continuous; short-span |
| Noise level | ≤65 dB | ≤65 dB |
| Control interface | Five-inch LCD touchscreen | Five-inch LCD touchscreen |
| Electrical supply | AC 110 V, 50/60 Hz | AC 110 V, 50/60 Hz |
| External dimensions | 606 × 572 × 361 mm | 606 × 572 × 361 mm |
| Approximate external dimensions | 23.86 × 22.52 × 14.21 in | 23.86 × 22.52 × 14.21 in |
| Shipping-package dimensions | 700 × 670 × 670 mm | 700 × 670 × 670 mm |
| Approximate package dimensions | 27.56 × 26.38 × 26.38 in | 27.56 × 26.38 × 26.38 in |
| Net weight | 62 kg / 136.69 lb | 62 kg / 136.69 lb |
| Gross weight, 110 V configuration | 75 kg / 165.35 lb | 75 kg / 165.35 lb |
The specifications and rotor-capacity distinctions above are derived from the BIOBASE manufacturer datasheet supplied for the BKC-TH16RC-I and BKC-TH16RB.
Rotor Compatibility
The series supports multiple aviation-forged aluminum angle and swing-out rotor configurations. Available capacities shown by the manufacturer include:
- 8 × 7 mL
- 12 × 10/15 mL, low-speed configuration
- 12 × 10 mL, high-speed configuration
- 12 × 1.5/2 mL
- 18 × 1.5/2 mL
- 24 × 1.5/2 mL
- 36 × 1.5/2 mL
- 48 × 1.5/2 mL
- 24 × 0.5 mL
- 30 × 0.5 mL
- 40 × 0.5 mL
- 4 × 8 × 0.2 mL PCR strips
- 10 × 5 mL
- 8 × 15 mL
- 6 × 50 mL
- 4 × 100 mL
- Capillary-tube rotor configurations
Rotor availability varies by centrifuge model. The 4 × 100 mL configuration applies to the BKC-TH16RC-I and is not listed for the BKC-TH16RB.

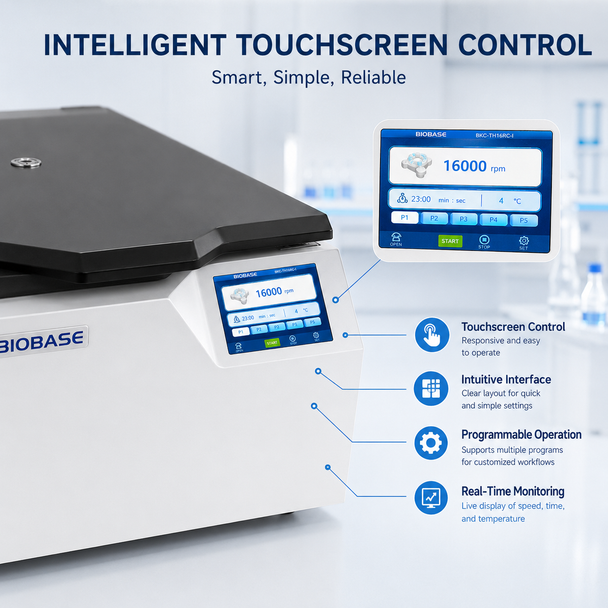

Control and Programming
The touchscreen interface allows operators to view and manage:
- Rotor speed
- Relative centrifugal force
- Chamber temperature
- Remaining operating time
- Program selection
- Refrigeration status
- Alarm conditions
- Acceleration and operating parameters
Multiple user-defined programs may be stored for frequently repeated protocols. The system also recalls the last operating program after startup.

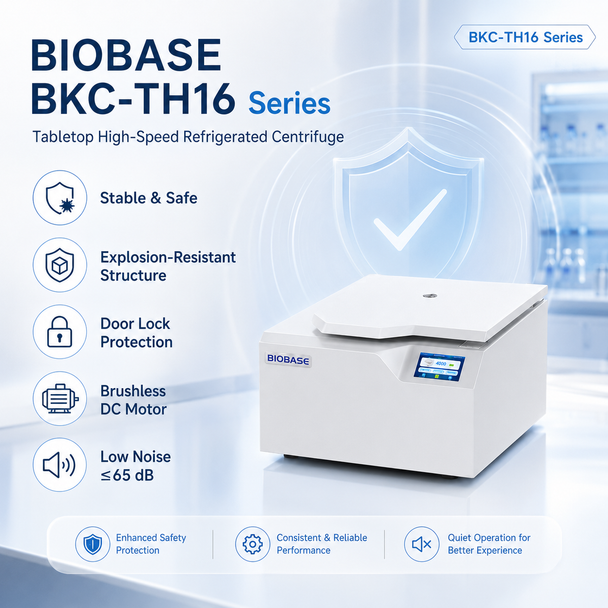

Safety Systems
- Multi-layer explosion-resistant construction
- Electromechanical lid lock
- Overspeed alarm
- Overtemperature alarm
- Blockage detection
- Automatic self-test
- Food-grade silicone chamber sealing ring
- Shock-absorbing motor support
- Refrigeration monitoring
- Optional automatic rotor recognition
Standard Configuration
- BIOBASE refrigerated centrifuge
- Five-inch touchscreen control system
- Integrated refrigeration system
- Electromechanical lid lock
- AC 110 V power configuration
- Manufacturer operating documentation
- Standard factory packaging
Important: A rotor is not assumed to be included unless it appears on the final written quotation. Rotor, adapter and tube requirements must be selected before order confirmation.
Ordering Information
Please specify:
- Selected centrifuge model
- Required rotor type
- Tube size and capacity
- Angle or swing-out rotor preference
- Required adapters
- Maximum required operating speed
- Maximum required sample volume
- AC 110 V electrical configuration
- Destination country
- Required certificates and inspection documents
- Installation, training or commissioning requirements
