Description

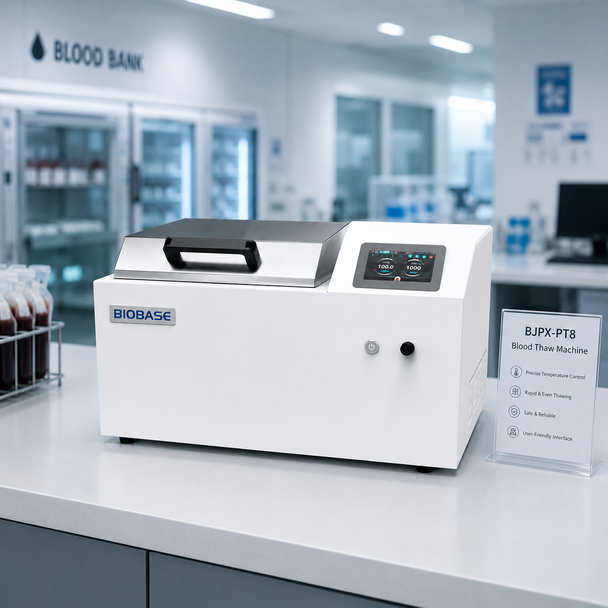

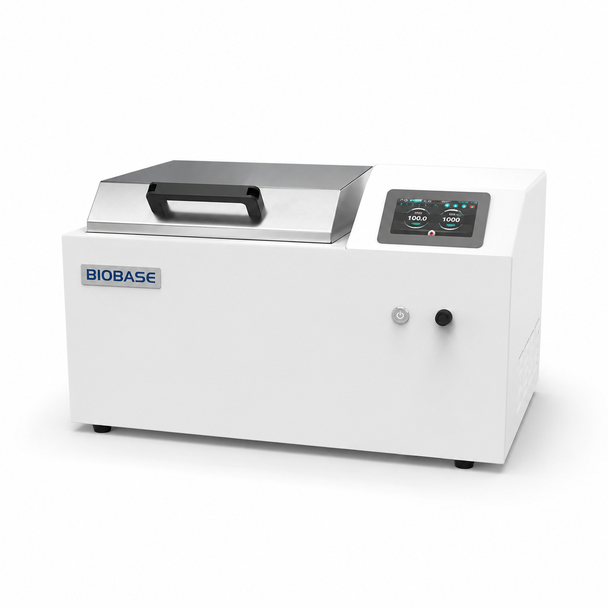

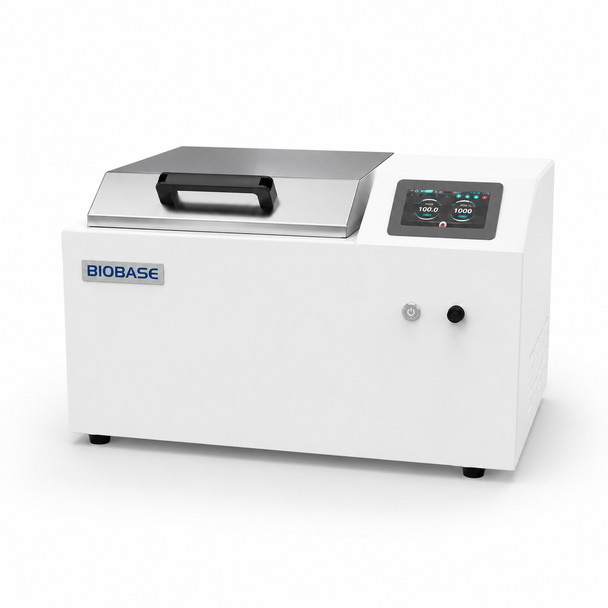

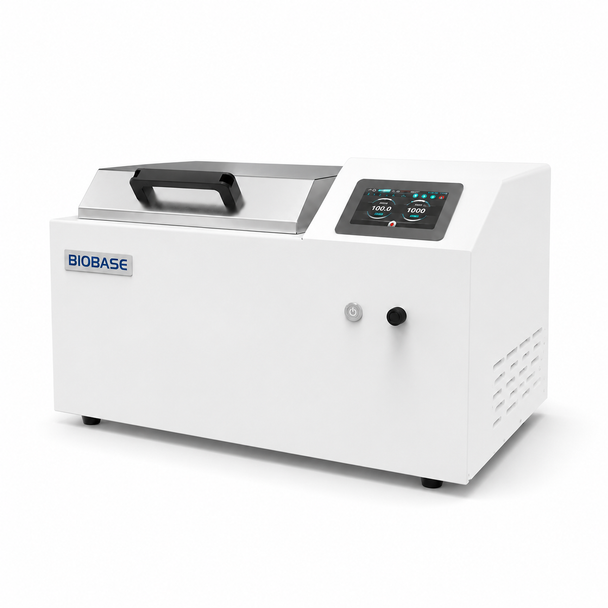

The BIOBASE BJPX-PT8 Blood Thaw Machine is a microcomputer-controlled thawing system designed for the rapid and controlled thawing of frozen blood components and biological products. It is intended for professional use in blood centers, hospital transfusion departments, clinical laboratories, blood banks, and blood-product production facilities.
The system combines PID temperature control, continuous horizontal reciprocating motion, programmable frequency operation, touchscreen monitoring, and multiple protective functions. Its three-layer thawing compartment accommodates approximately 1 to 12 units per operating cycle, depending on the configuration and size of the materials being processed.
This listing is configured for 110V, 50/60Hz operation using the manufacturer-specified external transformer. The manufacturer sheet identifies AC220V as the standard electrical configuration and AC110V as an optional configuration.
Key Features
- Microcomputer-based operating control
- Touchscreen user interface
- PID precision temperature-control technology
- Operating temperature maintained at approximately 37°C
- Temperature display resolution of ±0.1°C
- Three-layer thawing compartment
- Approximate capacity of 1–12 units per cycle
- Continuous left-and-right reciprocating horizontal motion
- Operating frequency of 60 ± 5 cycles per minute
- Automatic frequency-modulation capability
- Digital display of temperature, operating frequency, and time
- High-quality brushed stainless-steel inner liner
- Leakage-current protection
- Overvoltage protection
- Independent overtemperature-control system
- Audible or visual overtemperature alarm
- Double-protection design for operational safety
- Ergonomically positioned external control panel
- Benchtop or dedicated laboratory-workstation configuration
Intended Applications
The BJPX-PT8 may be used for controlled thawing workflows involving:
- Frozen plasma products
- Frozen blood components
- Blood-bank materials
- Biological products requiring controlled warming
- Hospital transfusion-department workflows
- Blood-component processing
- Clinical laboratory sample preparation
- Blood-product production facilities
- Research and institutional biomedical laboratories
Actual use must follow the blood-product manufacturer’s instructions, institutional procedures, applicable regulations, and validated laboratory protocols.
Technical Specifications
| Specification | BJPX-PT8 |
|---|---|
| Display | Touchscreen |
| Nominal temperature range | 37.0°C ± 1°C |
| Temperature resolution | ±0.1°C |
| Thawing capacity | 3 layers, approximately 1–12 pieces |
| Swing frequency | 60 ± 5 times per minute or automatic frequency modulation |
| Swing mode | Continuous left-and-right reciprocating horizontal motion |
| Thawing time | Up to approximately 16 minutes from −20°C to thawed condition |
| Recommended ambient temperature | 18°C–30°C |
| Standard power supply | AC220V, 50/60Hz |
| Listed configuration | Optional AC110V, 50/60Hz using external transformer |

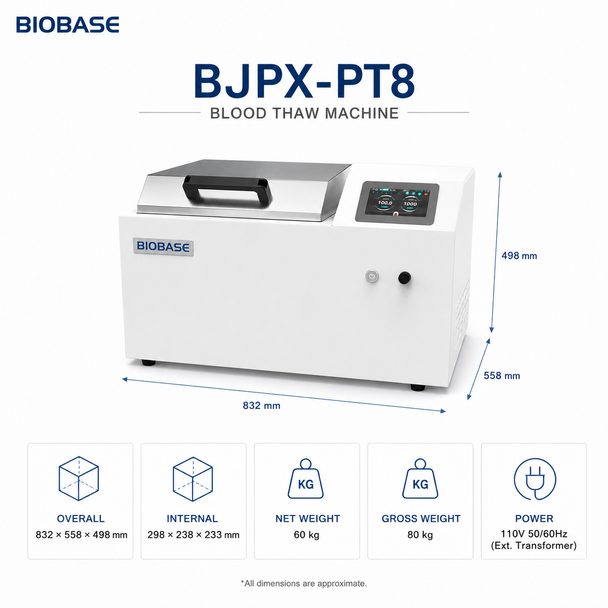

| Internal dimensions | 298 × 238 × 233 mm |
| External dimensions | 832 × 558 × 498 mm |
| Shipping-package dimensions | 935 × 665 × 665 mm |
| Net weight | 60 kg |
| Gross shipping weight | 80 kg |
The technical data above is taken from the BIOBASE manufacturer sheet for the BJPX-PT8. The manufacturer notes that the reported data was measured at an ambient temperature of approximately 25°C and relative humidity below 85%.
Temperature and Motion Control
The BJPX-PT8 uses microcomputer PID technology to regulate the thawing environment. The operating interface displays temperature, motion frequency, and cycle time. Continuous horizontal reciprocation helps promote more uniform exposure during the thawing process.
The system can operate at approximately 60 ± 5 motions per minute or use automatic frequency modulation, depending on the selected operating settings.
Safety and Protection Features
The system incorporates multiple equipment-protection functions, including:
- Leakage-current protection
- Overvoltage protection
- Independent overtemperature control
- Double overtemperature-protection architecture
- Alarm activation when the internal temperature exceeds the selected temperature by approximately 1°C
These features supplement, but do not replace, institutional monitoring, routine maintenance, temperature verification, and validated blood-bank procedures.
Construction
The internal liner is manufactured from brushed stainless steel for laboratory durability and routine cleaning. The controls are positioned on an angled external panel for visibility and operator access.
Cleaning agents and disinfectants must be selected according to the equipment manual and facility infection-control procedures. Do not use corrosive chemicals or abrasive tools unless expressly approved by the manufacturer.
Included Configuration
The listed configuration is expected to include:
- One BIOBASE BJPX-PT8 Blood Thaw Machine
- Three-layer internal thawing assembly
- Integrated touchscreen control system
- AC110V external transformer
- Standard power connection components
- Manufacturer documentation available with the shipment
Final included accessories, plug type, documentation language, and transformer specifications must be confirmed in the commercial quotation before production and shipment.
Ordering and Installation Requirements
Before ordering, the customer should confirm:
- Required input voltage and plug configuration
- Installation location and available counter space
- Electrical outlet capacity
- Facility temperature and humidity conditions
- Intended blood-component sizes and quantities
- Required calibration or validation documentation
- Local biomedical-engineering inspection requirements
- Freight-delivery access and receiving capabilities
This equipment has an estimated gross shipping weight of approximately 176.4 lb and may require freight delivery, dock access, a liftgate, or inside-delivery services.
