Description
The BIOBASE CMC-01 High-Value Consumables Cabinet is an intelligent medical inventory-management system designed for the secure storage, identification, tracking, and management of high-value consumable supplies within healthcare facilities.
Built around UHF RFID technology, the CMC-01 automatically detects the movement of tagged inventory entering or leaving the cabinet and supports real-time inventory counting. The system is engineered to improve accountability, inventory accuracy, supply visibility, and controlled access in environments such as operating rooms, interventional suites, emergency departments, and centralized medical-consumables storage areas.
Integration compatibility with hospital SPD and HIS systems allows the cabinet to function as part of a connected clinical supply-management environment.
Key Features
- UHF RFID Automatic Inventory Management — Automatically detects and counts RFID-tagged consumables entering or leaving the cabinet.
- 8 Integrated RFID Antennas — Designed for comprehensive RFID signal coverage inside the storage system.
- 300+ Tag Detection Capacity — Supports detection of more than 300 RFID tags.
- Fast RFID Reading — Tag-reading cycle of ≤5 seconds.
- Multi-Level Access Control — Configurable user permissions support hierarchical access management.
- Multiple Authentication Methods — Supports facial recognition, IC card, password, and finger-vein recognition.
- Electromagnetic Door Lock — Helps prevent unauthorized access by allowing the cabinet to open only after successful authorization.

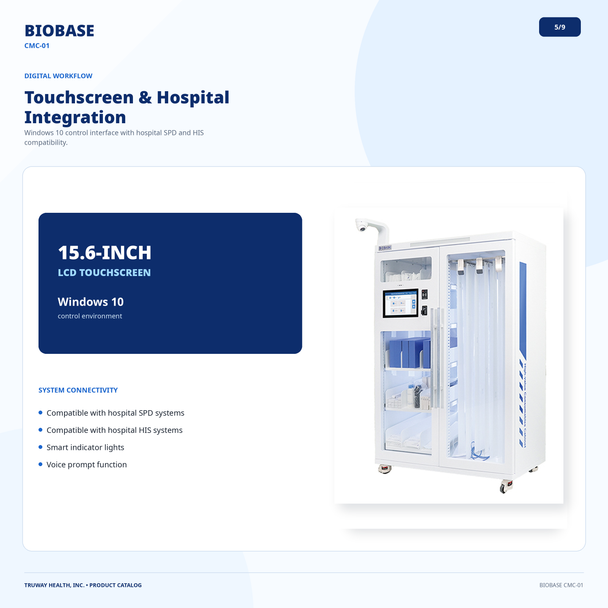

- 15.6-Inch LCD Touchscreen — Large integrated control interface operating on a Windows 10 system.
- Integrated Wide-Angle Camera — Captures images during inventory removal and replenishment events.
- Temperature & Humidity Monitoring — Built-in sensors provide environmental readings directly on the control screen.
- RFID Signal Containment — RFID shielding film and strips on the front door help reduce unwanted RFID signal transmission.
- Expandable System Architecture — Supports expansion cabinets managed by the main cabinet.
- Configurable Internal Storage — Adjustable drawer dividers and hanging racks accommodate different medical consumable formats.
- Smart Status Alerts — Indicator lights and voice-prompt functionality provide equipment and workflow notifications.
- Hospital System Connectivity — Designed for compatibility with hospital SPD and HIS systems.
Technical Specifications
| Specification | BIOBASE CMC-01 |
|---|---|
| Model | CMC-01 |
| Storage Configuration | 5 Drawer Dividers + 1 Hanging Rack |
| Authentication | Facial Recognition, IC Card, Password, Finger-Vein Recognition |
| Inventory Technology | Automatic UHF RFID Inventory Counting |
| RFID Antennas | 8 |
| RFID Detection Capacity | >300 Tags |
| RFID Read Speed | ≤5 Seconds |
| Display | 15.6-Inch LCD Touchscreen |
| Operating System | Windows 10 |
| Connectivity | Compatible with Hospital SPD and HIS Systems |
| Status Alerts | Smart Indicator Lights + Voice Prompts |
| Standard Power | AC 220V, 50/60Hz |
| Optional Power | AC 110V, 50/60Hz |
| External Dimensions | 1400 × 630 × 2105 mm |
| Package Dimensions | 1550 × 810 × 2300 mm |
| Net Weight | 200 kg / approx. 441 lb |
| Gross Shipping Weight | 220 kg / approx. 485 lb |
Recommended Applications
Operating rooms, surgical departments, interventional suites, emergency departments, hospital central supply areas, SPD operations, medical inventory rooms, high-value implant and consumable storage, and other healthcare environments requiring controlled access and real-time inventory visibility.
Catalog Pricing
BIOBASE CMC-01 High-Value Consumables Cabinet
SKU: TWH-BIO-CMC01
MPN: CMC-01
Unit Price: $478,400.00 USD
