Description

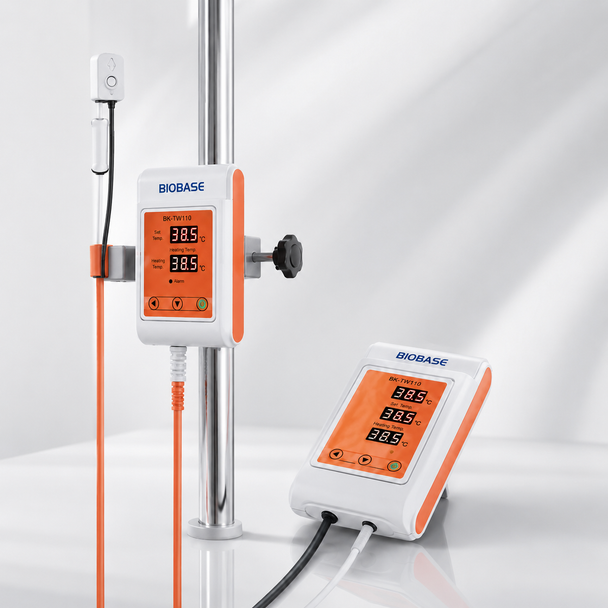

The BIOBASE BK-TW110 Fluid Warmer is a compact, single-channel warming system designed to warm and maintain the temperature of compatible blood products and intravenous fluids before administration to a patient. Its dry-heating, non-contact design transfers heat through the existing transfusion or infusion tubing without directly contacting the blood or medication.
The BK-TW110 features rapid preheating, adjustable temperature control, real-time LED monitoring and integrated alarm functions. Its plug-and-play heating sleeve accommodates common infusion-line diameters and does not require proprietary disposable warming sets, helping reduce operating costs in hospitals, emergency departments, surgical centers, infusion facilities and other clinical environments.
Important limitation: This product is not intended for warming analgesics, chemotherapy drugs or insulin.
Key Features
- Single-channel warming system for compatible blood and IV fluids
- Adjustable temperature range from 32.0°C to 42.0°C
- Temperature display resolution and accuracy of 0.1°C
- Preheats from 20°C to 36°C in 2 minutes or less
- Dry-heating design with no direct contact between the device and fluid
- Full-wrap heating sleeve for efficient and uniform heat transfer
- Fast heating performance in colder clinical environments
- Compatible with conventional blood transfusion and infusion tubing
- No special proprietary consumables required
- Plug-and-play heating tube assembly
- LED display for set temperature, actual heating temperature, elapsed heating time and alarm information
- Built-in over-temperature, under-temperature and no-liquid alarms
- Independent temperature sensors for enhanced monitoring
- Built-in alarm test function for routine safety verification
- Universal AC 100–240V, 50/60Hz power compatibility
- Compact and lightweight for pole-mounted or bedside use

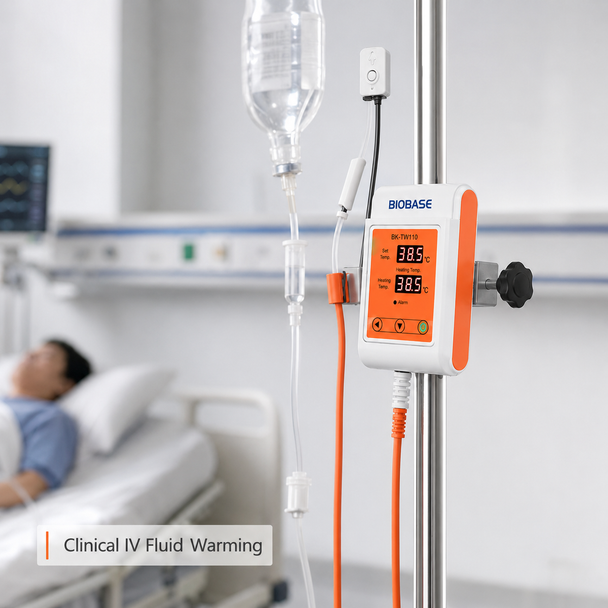

Clinical Applications
The BK-TW110 may be used in appropriately controlled clinical settings for warming compatible fluids associated with:
- Blood transfusion
- Intravenous fluid administration
- Operating-room procedures
- Emergency and trauma care
- Intensive care
- Recovery and postoperative care
- Infusion therapy
- Cold-environment medical operations
Use must remain consistent with the facility’s clinical protocols, tubing compatibility requirements and applicable regulatory authorization.
Temperature and Alarm Controls
Over-Temperature Alarm
An audible alarm activates when the actual temperature of the heating tube exceeds the programmed temperature by approximately 2°C.
Under-Temperature Alarm
An audible alarm activates when the actual heating-tube temperature falls approximately 3°C below the programmed temperature.
Safety Monitoring
The system includes:
- Built-in alarm testing
- Independent temperature sensing
- Real-time temperature monitoring
- No-liquid alarm
- Operating-status indication
- Alarm-information display
Technical Specifications
| Specification | BIOBASE BK-TW110 |
|---|---|
| Channel Configuration | Single channel |
| Adjustable Temperature Range | 32.0–42.0°C |
| Temperature Accuracy | 0.1°C |
| Preheating Time | ≤2 minutes, from 20°C to 36°C |
| Display | LED |
| Displayed Information | Heating time, set temperature, actual heating temperature, alarm status |
| Standard Tubing Inner Diameter | 3.5–5 mm |
| Optional Tubing Inner Diameter | 6–7 mm |
| Heating Method | Dry, full-wrap heating |
| Heating Sleeve | Three-cavity flexible silicone sleeve |
| Heating Elements | Four heating-wire sets |
| Temperature Sensors | Two independent sensor sets |
| Rated Power | 60 VA |
| Power Supply | AC 100–240V, 50/60Hz |
| External Dimensions | 172 × 95 × 175 mm |
| External Dimensions, Approx. | 6.77 × 3.74 × 6.89 in |
| Packing Dimensions | 250 × 220 × 230 mm |
| Packing Dimensions, Approx. | 9.84 × 8.66 × 9.06 in |
| Net Weight | 1.7 kg / 3.75 lb |
| Gross Shipping Weight | 2.1 kg / 4.63 lb |
| Manufacturer | BIOBASE |
| Model | BK-TW110 |
Heating-Tube Construction
The flexible heating sleeve incorporates a three-cavity silicone structure with four sets of heating wires and two independent temperature sensors. This arrangement supports consistent heat distribution and continuous temperature monitoring throughout operation.
Included Configuration
- BIOBASE BK-TW110 fluid warmer
- Single-channel heating sleeve
- Pole-mounting hardware
- Power connection
- Standard manufacturer accessories
- User documentation
Final package contents may vary according to voltage configuration, destination and manufacturer production revision.
Installation Requirements
- Compatible IV pole or equipment mounting surface
- AC 100–240V electrical supply
- Compatible infusion or transfusion tubing
- Installation and operational verification by qualified personnel
- Use in accordance with the manufacturer’s instructions and facility protocols
Factory-Direct Shipping
This product is supplied through a factory-direct fulfillment model. Production, quality-control review, export packaging and international transportation time may apply before final delivery.
Estimated shipping weight: 2.1 kg / 4.63 lb
Estimated shipping package: 9.84 × 8.66 × 9.06 inches
Import duties, customs brokerage, regulatory review, local taxes, destination delivery fees and installation services may be quoted separately unless expressly included in the order.
