Description

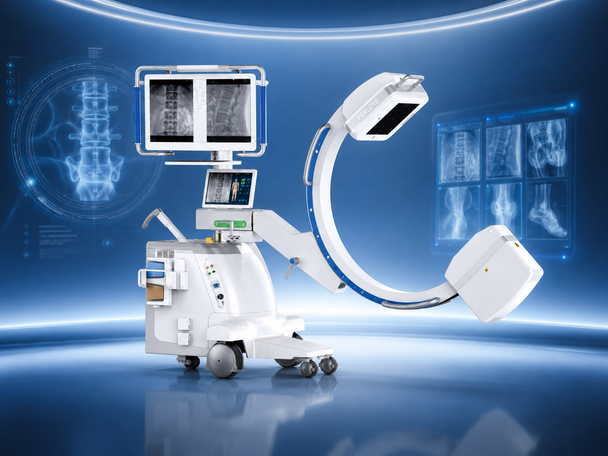

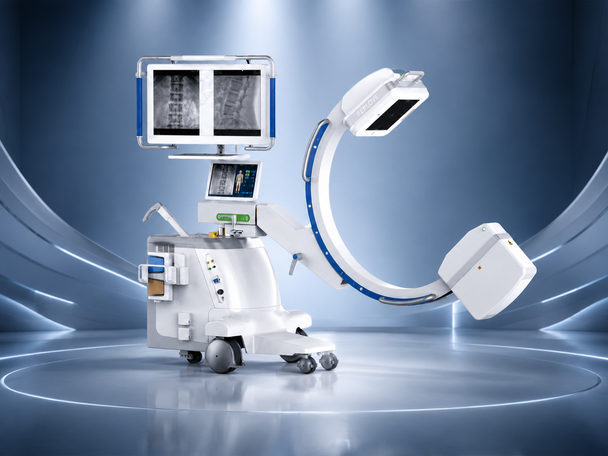

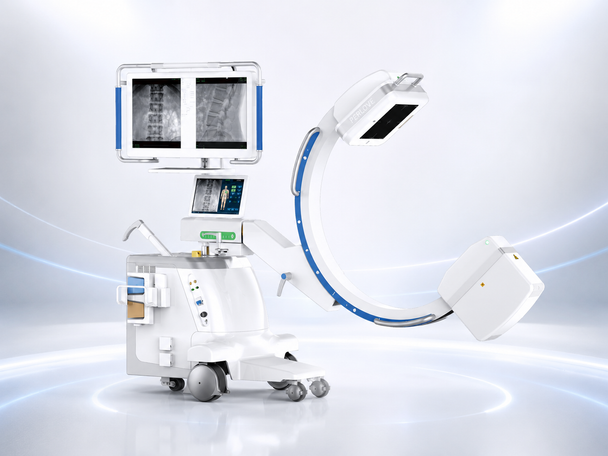

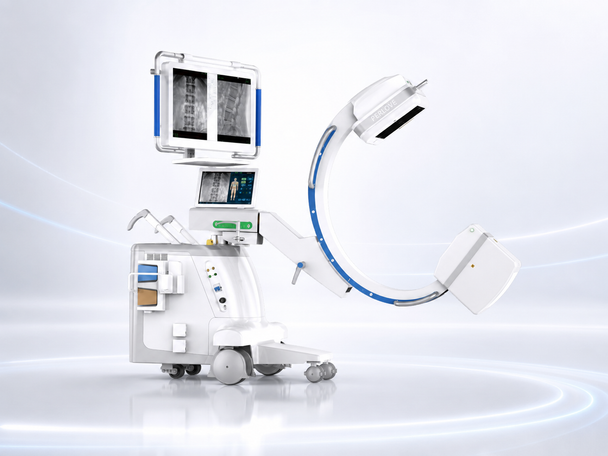

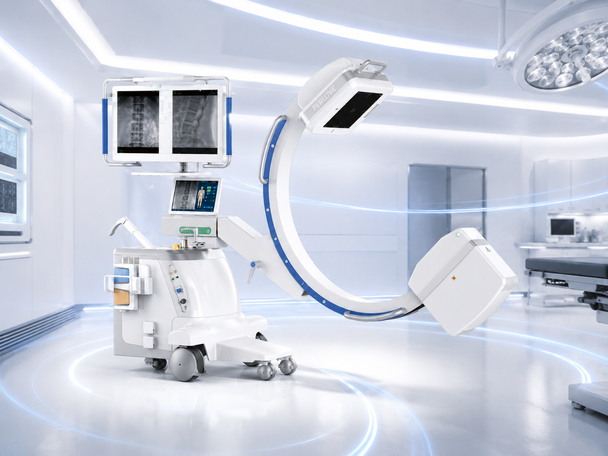

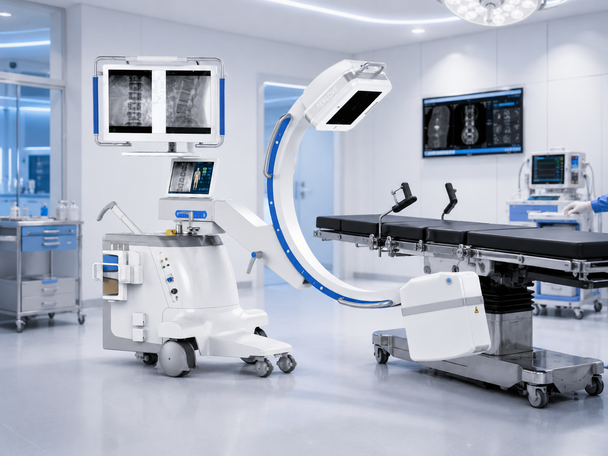

The PERLOVE PLX C2118 Series Mobile Digital FPD C-Arm System is an integrated mobile fluoroscopic imaging platform designed to combine the C-arm, digital imaging workstation, operator controls, and display system within a compact mobile footprint.
Its all-in-one configuration is intended to support efficient movement between operating rooms and facilitate single-operator positioning in space-constrained clinical environments. The system incorporates a dynamic flat-panel detector, high-frequency X-ray generator, large-format display, adjustable touchscreen, laser positioning, dose-management functions, and intelligent real-time image processing.
The brochure illustrates clinical imaging examples involving the lumbar spine, lateral lumbar region, hip, cervical spine, knee joint, and ankle. Final clinical indications, approved procedures, and regulatory status must be confirmed from the destination-country registration and the manufacturer’s current technical documentation.
Principal Features
Integrated Mobile Design
The C-arm and workstation are incorporated into a unified mobile platform. This compact structure reduces the equipment footprint, supports movement through crowded operating environments, and is designed to permit operation by a single trained user.

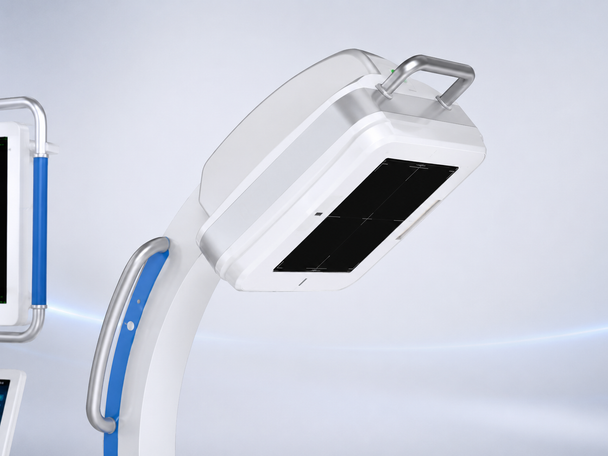

Dynamic Flat-Panel Detector
The system is presented with a 9 × 9-inch dynamic flat-panel detector featuring:
- 16-bit grayscale output
- Up to 65,536 grayscale levels
- High detective quantum efficiency
- Low-noise imaging
- Expanded dynamic range
- Real-time image acquisition
The detector is intended to provide clearer digital images than conventional image-intensifier configurations described in the manufacturer’s comparison.
27-Inch 4K Display
A large-format 27-inch ultra-wide LCD monitor provides a broad clinical viewing area. The display assembly can rotate through a wide range to accommodate image observation from different positions around the equipment.
Adjustable Touchscreen Controls
The operator touchscreen supports:
- Up to 270° rotation
- Approximately 30° tilt
- High-sensitivity touch operation
- Access from multiple positions around the system
Intelligent Image Processing
Real-time image-processing software automatically analyzes and enhances acquired images, reducing manual processing steps and supporting efficient clinical workflows.
Rapid Image Availability
The system is designed to produce images within approximately one second, helping shorten the time between exposure and clinical image review.
Dose-Management Functions
The PLX C2118 Series incorporates several dose-conscious technologies:
- Dedicated low-dose exposure mode
- High-frequency inverter technology
- Intelligent frame-rate adjustment
- Virtual collimation
- Detachable or pluggable anti-scatter grid
- Real-time dose-area product display
- Reduced unnecessary exposure through image-area adjustment
Two-Way Laser Positioning
Laser localizers are positioned at both the X-ray tube and flat-panel detector sides to assist with alignment and positioning.
Balanced C-Arm Movement
The manufacturer’s indifferent-equilibrium design allows the C-arm frame to remain positioned at different angles while unlocked, supporting controlled and stable movement.
Standby Mobility
A 10-minute standby-power function allows the equipment to be moved between rooms without remaining connected to external power during the transition.
Exposure Controls
The standard configuration includes a dual foot-switch arrangement. A wireless exposure foot pedal is shown as an optional configuration.
The final packing list should be confirmed before order acceptance. Based on the brochure, the commercial package is expected to center on:
- PLX C2118 mobile C-arm assembly
- Integrated X-ray generator
- 9 × 9-inch dynamic flat-panel detector
- Integrated digital imaging workstation
- 27-inch display system
- Adjustable touchscreen control panel
- Dual foot-switch controls
- Laser positioning system
- Pluggable grid
- Power and connection accessories
- Manufacturer operating documentation
The wireless foot pedal is optional and should not be represented as standard equipment unless included in the signed factory quotation.
The PLX C2118 Series is designed for use by trained healthcare professionals in appropriately equipped medical facilities. The manufacturer’s brochure presents image examples involving:
- Lumbar vertebrae
- Lateral lumbar anatomy
- Hip imaging
- Lateral cervical imaging
- Knee joint imaging
- Lateral ankle imaging
Actual permitted indications depend on the device registration, labeling, installed configuration, physician judgment, facility protocol, and applicable law.
This product is a professional medical X-ray imaging system and is not intended for consumer or home use.
Sale, importation, installation, possession, and operation may require:
- Destination-country medical-device authorization
- Radiation-emitting product documentation
- State or local radiation-equipment registration
- Facility shielding evaluation
- Qualified installation
- Acceptance testing
- Medical physicist review
- Operator licensing or credentialing
- Preventive maintenance and quality-assurance procedures
The supplied brochure does not establish FDA clearance, U.S. market authorization, electrical certification, generator output, tube specifications, electrical input, equipment dimensions, or gross shipping weight. These details must be obtained from current manufacturer documentation before the listing is represented as available for U.S. clinical deployment.
