Description

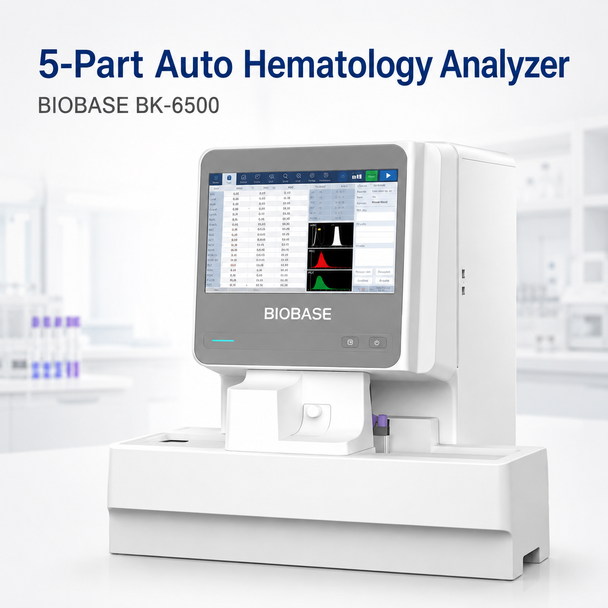

The BIOBASE BK-6500 5-Part Auto Hematology Analyzer is a high-throughput laboratory system designed for automated complete blood count and five-part white blood cell differential testing. It combines tri-angle laser scatter, flow cytometry, electrical impedance, three-dimensional scattergram analysis, and a cyanide-free hemoglobin testing method.
With throughput of up to 70 tests per hour, a 50-position automatic sample loader, and a responsive 14-inch touchscreen, the BK-6500 supports efficient testing workflows in hospitals, clinical laboratories, diagnostic centers, reference laboratories, and other professional healthcare environments.
Key Features
- Up to 70 tests per hour
- Five-part white blood cell differential analysis
- 50-position automatic sample loader
- Automatic sample loading, mixing, and sampling

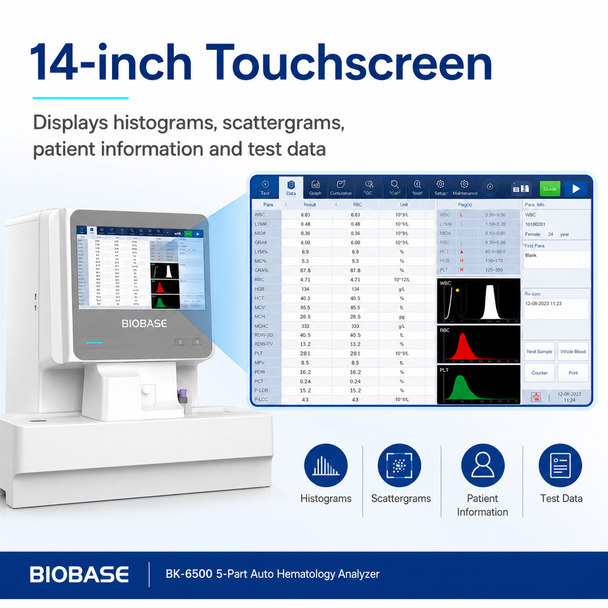

- Large 14-inch touchscreen display
- Tri-angle laser scatter and flow cytometry technology
- Electrical impedance counting for RBC and PLT
- Cyanide-free hemoglobin measurement
- Three-dimensional WBC scattergram display
- Venous, capillary, and prediluted blood testing modes
- Twenty-five reportable parameters
- Six additional research parameters
- Storage capacity for up to 300,000 test results
- Bidirectional LIS connectivity with HL7 support
- Integrated RFID reagent identification
- Four USB ports and one LAN port
Testing Modes
- CBC mode
- CBC + DIFF mode
- Venous whole blood
- Capillary whole blood
- Prediluted blood
Sample Volume
| Testing Mode | Required Sample Volume |
|---|---|
| CBC + DIFF | 19 µL |
| CBC | 10 µL |
| Prediluted Blood | 20 µL |
Reportable Parameters
The BK-6500 reports the following 25 parameters:
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, and BAS#.
Research Parameters
ALY%, ALY#, LIC%, LIC#, NRBC%, and NRBC#.
Histograms and Scattergrams
- WBC/BASO histogram
- RBC histogram
- PLT histogram
- Three-dimensional WBC scattergram
Analytical Performance
| Test Item | Linearity Range | Carryover | CV |
|---|---|---|---|
| WBC | 0–300.0 × 10⁹/L | ≤0.5% | ≤2.0% |
| RBC | 0–8.00 × 10¹²/L | ≤0.5% | ≤1.5% |
| HGB | 0–260 g/L | ≤0.5% | ≤1.5% |
| PLT | 0–3000 × 10⁹/L | ≤1.0% | ≤4.0% |
Technical Specifications
| Specification | Details |
|---|---|
| Throughput | 70 tests per hour |
| Differential | Five-part WBC differential |
| Assay Output | 25 reportable parameters and 6 research parameters |
| Measurement Principles | Tri-angle laser scatter, flow cytometry, electrical impedance, 3D scattergram analysis and cyanide-free HGB testing |
| Sample Loader | 50 sample positions |
| Display | 14-inch touchscreen |
| Display Resolution | 1366 × 768 |
| Result Storage | Up to 300,000 results |
| Connectivity | 4 USB ports and 1 LAN port |
| LIS | Bidirectional LIS with HL7 protocol support |
| Reagent Identification | Internal RFID reader |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Rated Power | 300 VA |

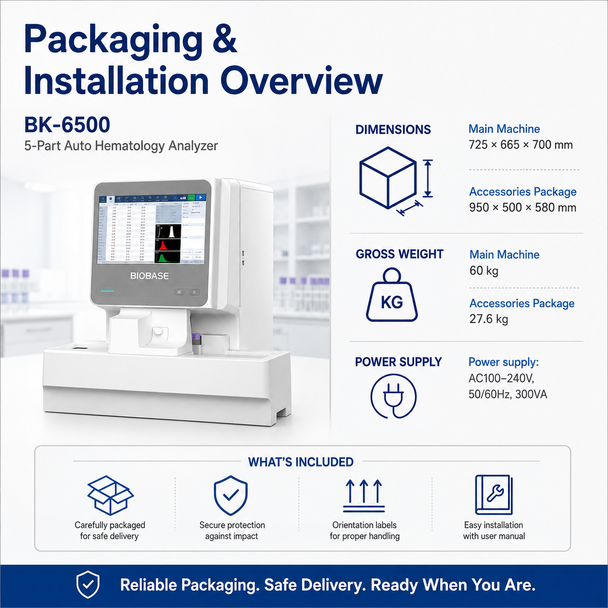

Shipping and Packaging Information
Main Analyzer Package
- Package dimensions: 725 × 665 × 700 mm
- Approximate dimensions: 28.5 × 26.2 × 27.6 inches
- Gross weight: 60 kg / approximately 132.3 lb
Accessories Package
- Package dimensions: 950 × 500 × 580 mm
- Approximate dimensions: 37.4 × 19.7 × 22.8 inches
- Gross weight: 27.6 kg / approximately 60.8 lb
Combined Packaged Weight
Approximately 87.6 kg / 193.1 lb, excluding pallets, protective overpacking, and freight materials.
Reagent Packaging
| Reagent Package | Package Dimensions | Gross Weight |
|---|---|---|
| Reagent Package 1 | 330 × 330 × 330 mm | 22 kg |
| Reagent Package 2 | 330 × 230 × 230 mm | 2 kg |
| Reagent Package 3 | 330 × 230 × 230 mm | 1 kg |
Recommended Applications
- Hospital clinical laboratories
- Independent diagnostic laboratories
- Reference laboratories
- Hematology departments
- Medical centers
- Research and academic laboratories
- High-volume outpatient testing facilities
Ordering and Configuration Notice
The listed configuration should be confirmed at the time of quotation, including electrical requirements, reagent package, controls, calibrators, accessories, installation, operator training, LIS integration, freight, and destination-specific regulatory documentation.
This equipment is intended for operation by trained laboratory personnel in accordance with applicable clinical laboratory procedures and local regulatory requirements. Product registration and commercial availability may vary by jurisdiction.
