Description

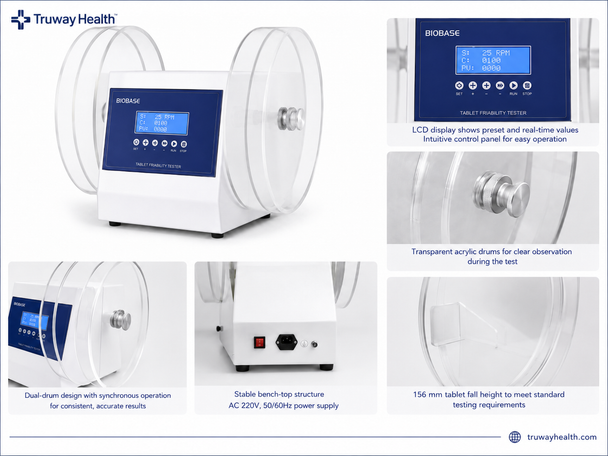

The BIOBASE BCS-2 Tablet Friability Tester is a benchtop pharmaceutical quality-control instrument designed to evaluate the mechanical stability, abrasion resistance, and collision resistance of tablets during production, packaging, storage, and transportation. The system can also be used to assess the friability characteristics of coated tablets and capsules.
Its synchronized dual-drum configuration supports efficient sample evaluation, while transparent acrylic drums provide clear visibility throughout the test cycle. Intelligent speed and rotation-count controls help laboratories conduct repeatable tablet durability testing using preset and real-time operating values.
Key Features
- Single-channel, dual-drum testing system
- Synchronous drum operation
- Automatic shutdown after the programmed cycle
- Transparent acrylic drums for direct sample observation
- Adjustable rotation-count settings
- Countdown operating mode
- Intelligent drum-speed and cycle-count control

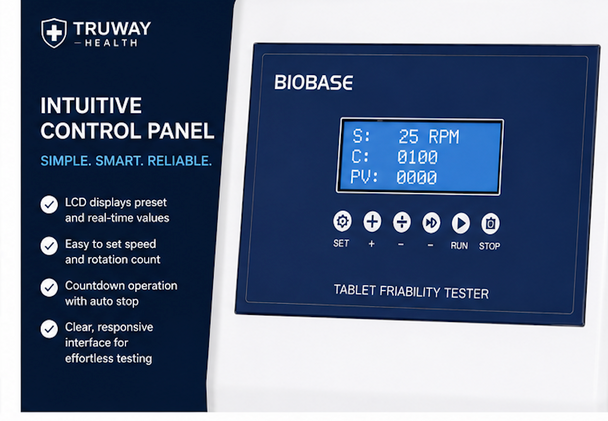

- LCD interface displaying preset and real-time values
- Manufacturer-configured rotation speed and count parameters intended to support pharmacopoeial testing workflows

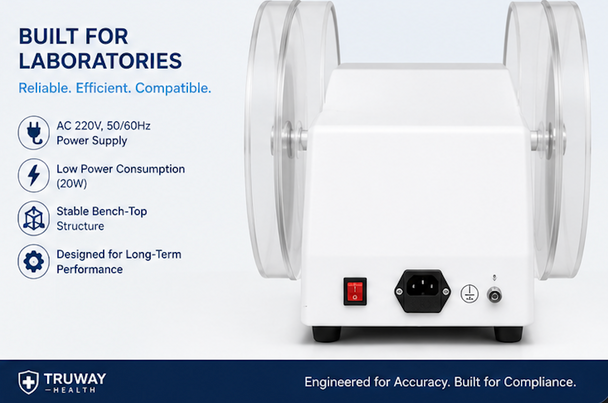

- Compact benchtop configuration for pharmaceutical and laboratory environments
Technical Specifications
| Specification | BCS-2 |
|---|---|
| Number of cylinders/drums | 2 |
| Manufacturer-listed cylinder measurement | Φ286 mm |
| Cylinder depth | 39 mm |
| Tablet fall height | 156 mm |
| Rotating speed | 25 rpm |
| Rotating accuracy | ±1 rpm |
| Rotation-count range | 10–990 turns |
| Count control | Adjustable, countdown mode |
| Power consumption | 20 W |
| Standard power supply | AC 220V, 50/60Hz |
| Optional power configuration | AC 110V, 60Hz with external transformer |
| External dimensions, W × D × H | 370 × 300 × 340 mm |
| Shipping-package dimensions, W × D × H | 500 × 400 × 400 mm |
| Net weight | 8 kg |
| Gross shipping weight | 12 kg |
The specifications above are reproduced from the manufacturer’s BCS-2 product sheet.
Recommended Applications
Suitable for use in:
- Pharmaceutical manufacturing quality control
- Tablet formulation and development laboratories
- Contract research and analytical laboratories
- Academic pharmaceutical-science programs
- Tablet production-line inspection
- Incoming and finished-product quality assessment
- Stability and packaging-development programs
Available Configuration
BCS-2 Tablet Friability Tester — 220V
SKU: TWH-BIO-BCS2-220
MPN: BCS-2
Power: AC 220V, 50/60Hz
Drum Configuration: Dual drum
List Price: $20,160.00 USD
An AC 110V configuration may be available through an external transformer as a special-order option. Pricing for that configuration should be confirmed before purchase.
Standard Package
- BIOBASE BCS-2 tablet friability tester
- Two transparent testing drums
- Integrated LCD control interface
- Standard 220V power connection
- Manufacturer-supplied operating documentation
Final package contents should be confirmed on the commercial quotation before fulfillment.
Ordering and Installation Notes
This product should be ordered in the voltage and frequency configuration appropriate for the installation site. Customers are responsible for confirming electrical compatibility, laboratory bench capacity, environmental requirements, testing procedures, and any applicable calibration or qualification requirements before operation.
