Description

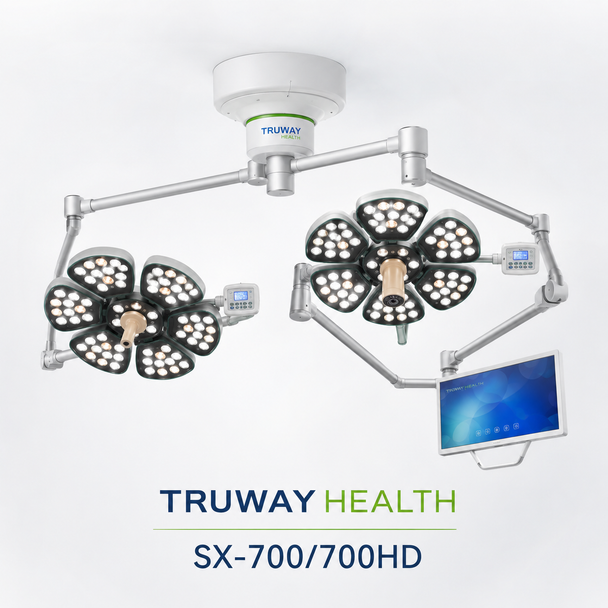

Elevate operating-room visibility with the Truway Health SX-700/700HD, a ceiling-mounted, dual-dome LED surgical lighting system combining powerful shadow-reduced illumination with an integrated Sony HD camera and display system.
Its flower-style lightheads contain 144 LEDs and provide adjustable, cool illumination designed for general surgery, orthopedics, cardiovascular procedures, neurosurgery, teaching environments, and other demanding clinical applications. The camera system supports real-time procedural viewing, documentation, training, and remote observation workflows.
Key Features

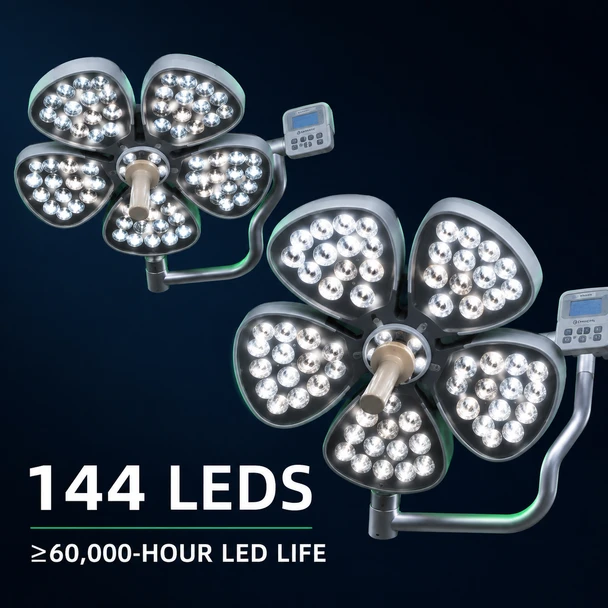

- Dual 700 mm flower-style LED surgical lightheads
- 144 high-performance LEDs across the complete system
- Integrated Sony HD surgical camera system
- Included medical-grade display monitor
- Adjustable illumination from approximately 40,000 to 160,000 lux per lighthead
- Adjustable color temperature from 3,700 to 5,000 K
- Color Rendering Index of CRI ≥96
- Color rendition value of Ra ≥97
- Digital brightness adjustment from 1% to 100%
- Adjustable light-spot diameter from 150 to 350 mm
- Illumination depth of at least 1,200 mm
- Shadow-reduced lighting for deep and surface procedures
- Cool-light LED technology with minimal thermal impact
- Estimated LED service life of at least 60,000 hours
- Multi-axis suspension arms for flexible positioning
- Smooth, cleanable lighthead surfaces
- Ceiling-mounted configuration preserves valuable floor space
Technical Specifications
| Specification | Details |
|---|---|
| Product type | Ceiling-mounted LED surgical lighting system |
| Model | SX-700/700HD |
| Lighthead configuration | Dual dome |
| Lighthead diameter | 700 mm each |
| Lighthead design | Flower-style |
| Total LED quantity | 144 LEDs |
| Illuminance | Approximately 40,000–160,000 lux per lighthead |
| Color temperature | 3,700–5,000 K |
| Light-spot diameter | 150–350 mm |
| Illumination depth | ≥1,200 mm |
| Brightness control | Digital, 1%–100% |
| Color Rendering Index | CRI ≥96 |
| Color rendition | Ra ≥97 |
| Working radius | Approximately 600–1,800 mm |
| Temperature increase at surgeon’s head | ≤1°C |
| Temperature increase within operating field | ≤2°C |
| LED service life | ≥60,000 hours |
| Camera system | Integrated Sony HD camera configuration |
| Display | External monitor included |
| Mounting | Structural ceiling mount |
| Electrical configuration | 110–120 VAC, 60 Hz available by order; confirm before production |
| Standard factory electrical configuration | 220 VAC, 50 Hz |
| Recommended installation height | Approximately 2,800–3,000 mm, subject to site survey |
Camera and Visualization System
The integrated Sony camera configuration provides a clear overhead view of the surgical field for procedural observation, education, documentation, and clinical collaboration. Final camera resolution, video outputs, recording functions, connectivity, and monitor size are configuration-dependent and will be confirmed on the approved quotation.
Included Components
- Two 700 mm LED surgical lightheads
- Ceiling suspension and positioning-arm assembly
- Integrated Sony HD camera system
- Display monitor
- Digital light controls
- Sterilizable operating handles
- Ceiling mounting hardware package
- Power supply and control components
- English operating and maintenance documentation
Applications
Suitable for:
- Hospital operating rooms
- Ambulatory surgical centers
- General surgery
- Orthopedic surgery
- Cardiovascular procedures
- Neurosurgery
- Obstetric and gynecological procedures
- Surgical education and observation
- Clinical procedure recording
- Veterinary surgical facilities
Shipping Information
- Product net weight: approximately 110 kg / 242.5 lb
- Curbside shipping weight: approximately 130 kg / 286.6 lb
- Total freight volume: approximately 0.87 m³ / 30.7 ft³
- Number of shipping packages: 3
Package Dimensions
- 940 × 940 × 255 mm — approximately 37.0 × 37.0 × 10.0 in
- 940 × 940 × 255 mm — approximately 37.0 × 37.0 × 10.0 in
- 1,220 × 670 × 580 mm — approximately 48.0 × 26.4 × 22.8 in
Ships by commercial freight. Loading-dock, liftgate, inside-delivery, installation, and debris-removal services must be quoted separately.
Availability
Configured to order. Estimated production lead time is 10–14 business days after payment, electrical confirmation, ceiling specifications, camera configuration, and final drawing approval. Freight transit and installation scheduling are additional.
Installation Requirements
Professional installation by a qualified medical-equipment installer and licensed electrician is required. The purchaser must verify ceiling structure, anchoring capacity, finished ceiling height, electrical service, suspension clearance, room layout, and compatibility with other ceiling-mounted equipment before production.
Warranty
Includes a 12-month limited warranty covering verified manufacturing defects under normal clinical use. Warranty service may include replacement parts and remote technical support. Labor, travel, installation corrections, consumables, accidental damage, improper cleaning, voltage-related damage, unauthorized modification, and structural mounting work are excluded unless specifically included in the sales agreement.
Important Configuration Notice
This equipment is manufactured to order. Final specifications—including electrical input, camera resolution, display size, video outputs, recording capability, ceiling anchoring system, suspension length, certifications, and included accessories—must be documented in the approved quotation before production.
Brand: Truway Health
Manufacturer: Jiangsu Suxin Medical Equipment Co., Ltd.
Model: SX-700/700HD
Condition: New
Product Category: Surgical Lighting and Operating-Room Equipment
Ordering Status: Special-order commercial medical equipment
