Description

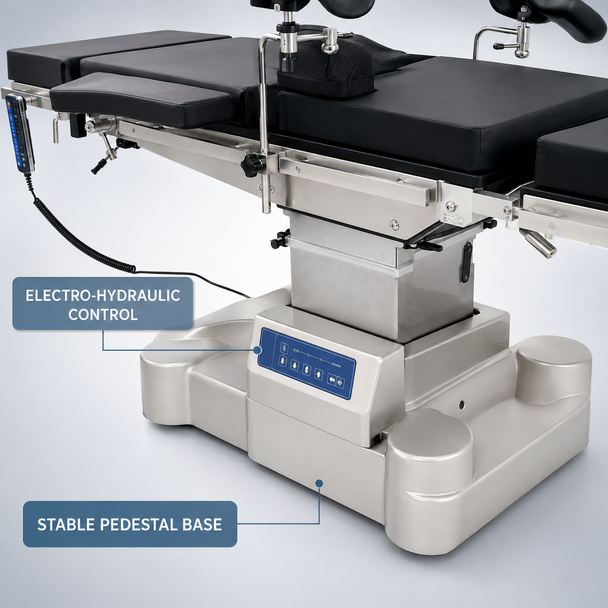

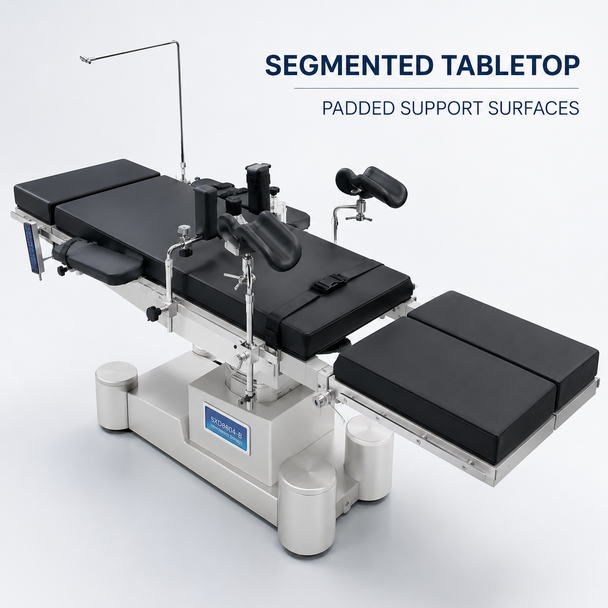

The SXD8804-B is a heavy-duty electro-hydraulic operating table designed for controlled patient positioning in professional surgical environments. It features a segmented padded tabletop, stable pedestal base, and manufacturer-designated 500 kg model configuration.
Product Overview
Engineered for hospitals, operating rooms, ambulatory surgical centers, and specialty clinics, the SXD8804-B combines electro-hydraulic positioning with a modular tabletop design. Its articulated sections support procedure-specific positioning while the substantial base provides stability throughout clinical use.
The table measures approximately 1700 × 700 × 1000 mm and is supplied as a complete professional-use system. Electrical configuration, included accessories, positioning ranges, and regulatory documentation must be confirmed before ordering.
Key Features
- Electro-hydraulic operating-table system
- Manufacturer-designated 500 kg model
- Multi-section articulated tabletop
- Removable padded patient-contact surfaces
- Stable central pedestal and floor base
- Integrated positioning-control system
- Configurable accessory and support components
- Designed for professional surgical facilities
- Heavy-duty 330 kg net construction
- Export-ready commercial packaging
Intended Applications
- General surgical positioning
- Orthopedic procedures
- Trauma and reconstructive surgery
- Abdominal and thoracic procedures
- Urological and gynecological procedures
- Ambulatory surgical-center applications
- Hospital operating-room workflows
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Electro-hydraulic operating table |
| Model | SXD8804-B |
| Manufacturer Part Number | SXD8804-B |
| Truway Health SKU | TH-OT-SXD8804B-EH500 |
| Configuration | Manufacturer-designated 500 kg model |
| Operating System | Electro-hydraulic |
| Table Dimensions | 1700 × 700 × 1000 mm |
| Dimensions in Inches | 66.9 × 27.6 × 39.4 in |
| Net Product Weight | 330 kg / 728 lb |
| Gross Shipping Weight | 350 kg / 772 lb |
| Shipping Volume | 1.19 m³ |
| Quantity | 1 complete unit |
| HS Code | 9402.90 |
| Condition | New |
| Electrical Requirements | Confirm voltage, frequency, and plug before ordering |
What’s Included
- SXD8804-B electro-hydraulic operating table
- Segmented padded tabletop components
- Integrated electro-hydraulic positioning system
- Standard supports and components shown
- Operating and maintenance documentation
- Standard export packaging
The final included-component schedule is governed by the approved quotation and purchase order.
Configuration Notice
The purchaser must confirm the intended procedures, required positioning functions, electrical supply, accessory requirements, installation location, doorway clearances, and applicable regulatory requirements before production or shipment.
Warranty
Includes a 12-month limited warranty against defects in materials and workmanship under normal professional use. Coverage excludes normal wear, upholstery damage, improper installation, overloading, misuse, accidental damage, unauthorized modification, incompatible accessories, and service performed by unauthorized personnel.
Shipping Availability
Freight shipment required. Availability and production lead time are confirmed after the final configuration, voltage, accessories, and delivery location are approved. Installation, training, lift-gate service, inside delivery, and customs clearance are quoted separately.
Professional-Use Notice
For use by trained healthcare professionals in appropriately equipped clinical facilities. Verify the rated load, positioning limits, electrical requirements, included accessories, regulatory status, and manufacturer instructions before clinical use.
