Description

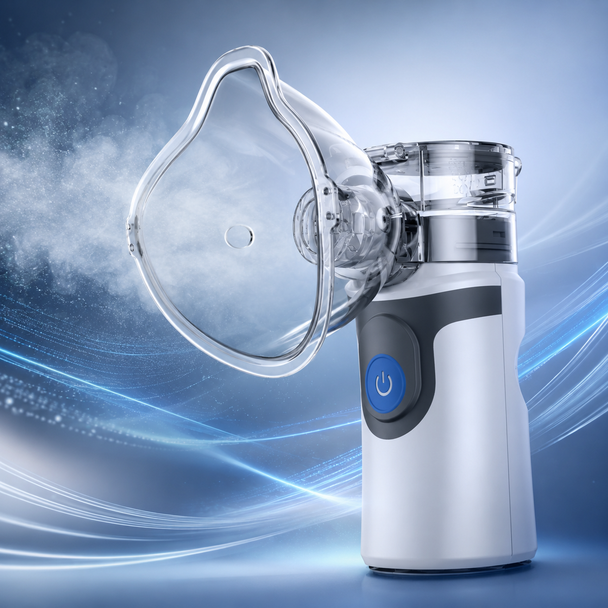

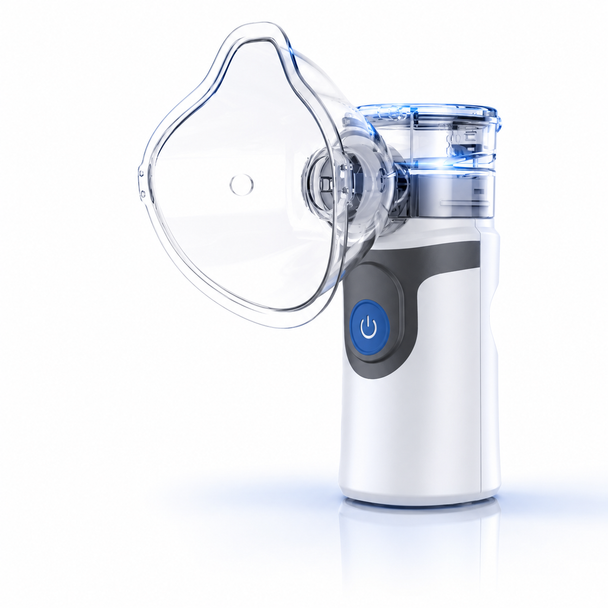

The JA-UN101 Portable Mesh Nebulizer is a compact, rechargeable aerosol delivery device designed to convert compatible liquid medication into a fine inhalable mist. Its vibrating-mesh technology produces particles with an MMAD below 5 μm while maintaining a nebulization rate of at least 0.25 mL per minute.
The handheld design, low operating noise, rechargeable lithium battery and included adult and pediatric masks make the JA-UN101 suitable for home-care programs, outpatient facilities, pharmacies, respiratory-care distributors, emergency preparedness inventories and institutional procurement.
Key Features
- Compact, upright handheld configuration
- Rechargeable 3.7V lithium battery
- Fine-particle vibrating-mesh aerosol generation
- Maximum medication-cup capacity of 10 mL
- Low operating noise of 50 dB(A) or less
- One-button operation
- Adult and pediatric mask configurations
- USB charging cable included
- Lightweight design for transportation and storage
- Individually packaged in a retail-ready color box
Technical Specifications
| Specification | JA-UN101 |
|---|---|
| Operating voltage | DC 3.7V |
| Battery type | Rechargeable lithium battery |
| Rated power | Less than 2W |
| Nebulization technology | Vibrating mesh |
| Nebulization rate | ≥0.25 mL/min |
| Particle size | MMAD <5 μm |
| Particle distribution | Approximately 0.5–5 μm |
| Respirable fraction | >60% |
| Vibration frequency | 110 kHz ±10% |
| Medication-cup capacity | Maximum 10 mL |
| Recommended liquid temperature | ≤50°C |
| Operating noise | ≤50 dB(A) |
| Product weight | 95 g ±10%, excluding batteries |
| Product dimensions | 67 × 42 × 116 mm |
| Packaged dimensions | Approximately 67 × 45 × 119 mm |

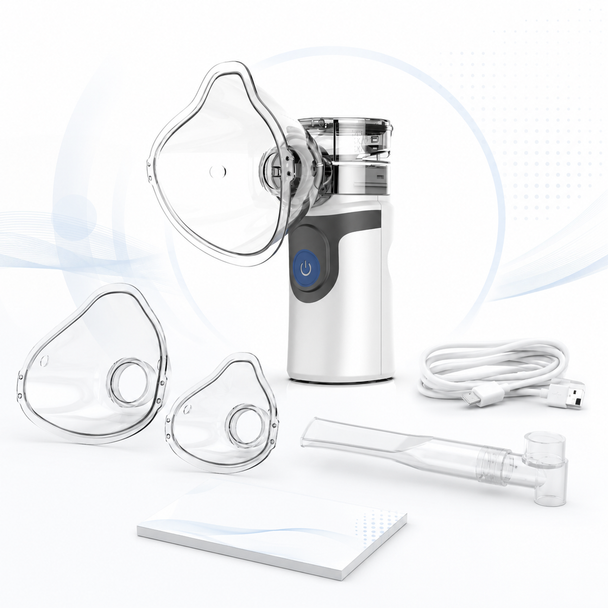

Package Contents
Each individually boxed set contains:
- 1 × JA-UN101 mesh nebulizer
- 2 × inhalation masks
- 1 × connecting tube or mouthpiece assembly
- 1 × charging cable
- 1 × user manual
Packaging and Fulfillment
Retail packaging: 1 complete set per color box
Master carton: 50 color boxes per carton
MOQ: 500 complete sets
Cartons per minimum order: 10 cartons
Minimum-order merchandise value: $35,600.00
Freight, insurance, customs clearance, import duties, regulatory documentation, labeling modifications and destination delivery are quoted separately unless specifically included in the commercial offer.
Intended Use
The JA-UN101 is intended to aerosolize compatible physician-prescribed or over-the-counter inhalation solutions for respiratory delivery. Medication selection, dosage, treatment duration and cleaning procedures must follow the medication manufacturer’s instructions and the direction of a qualified healthcare professional.
Regulatory and Safety Notice
Regulatory registration, market authorization and labeling requirements vary by jurisdiction. U.S. buyers should confirm applicable FDA device status, establishment registration, device listing and prescription-use requirements before clinical distribution. This device is not represented as a ventilator, oxygen concentrator or life-support device and is not intended to replace emergency medical treatment.
