Description
The FOTRIC TK6 is a high-precision handheld infrared thermal camera designed for electrical inspection, PCB troubleshooting, laboratory equipment monitoring, HVAC assessment, preventive maintenance, and facility safety applications. Its 384 × 288 infrared detector, 30 Hz frame rate, manual focusing system, and 0.15-meter minimum focusing distance provide clear thermal visualization of both small components and larger equipment.
Key Features

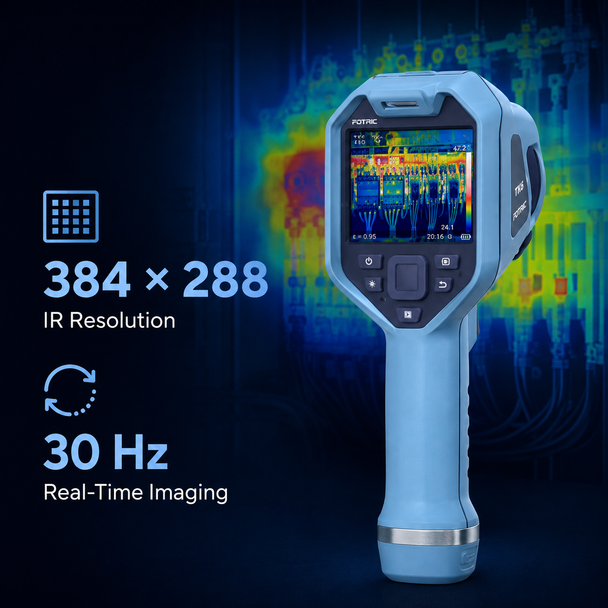

- High-resolution 384 × 288 infrared thermal imaging
- Smooth 30 Hz real-time image refresh rate
- Wide –20°C to 550°C measurement range
- ≤40 mK thermal sensitivity for detecting subtle temperature differences
- Manual focus for precise close-up and distance inspections
- Minimum focusing distance of approximately 0.15 meters
- 25° field of view
- Thermal, visible-light, picture-in-picture, and T-DEF image modes
- IP54-rated protection against dust and water splashes
- Rechargeable 5,000 mAh battery
- Ergonomic handheld design for field and benchtop use
Recommended Applications

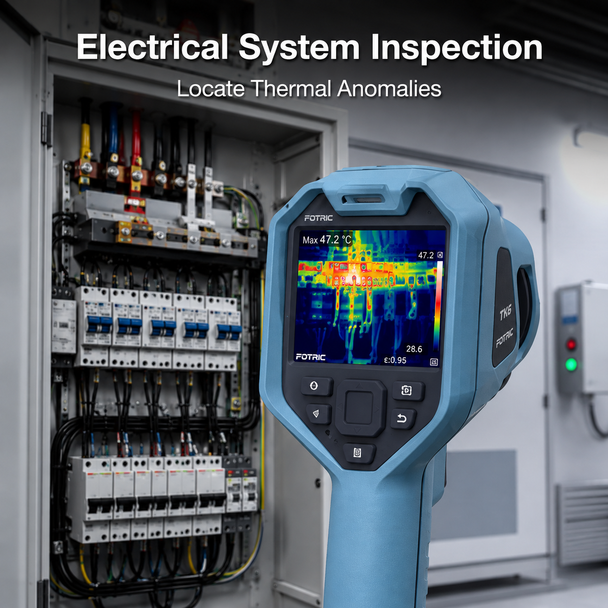

- Electrical panels, switchgear, wiring, and circuit inspection
- Printed circuit board and electronic-component troubleshooting
- Laboratory and healthcare-facility equipment monitoring

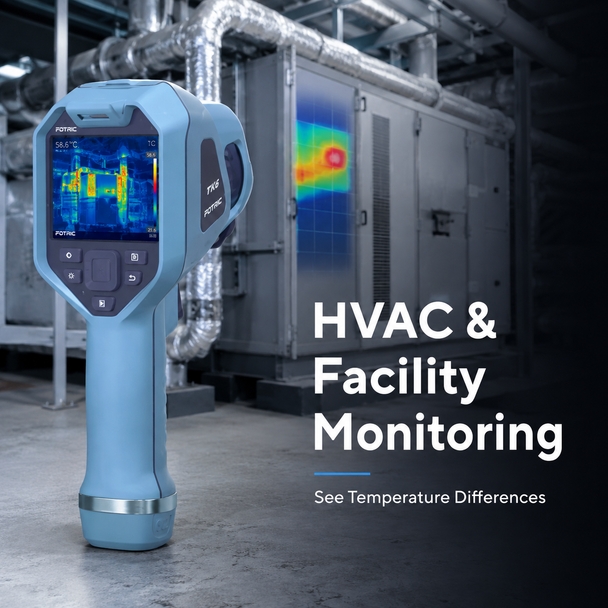

- HVAC system and building-envelope assessment
- Motor, pump, bearing, and mechanical-system inspection
- Preventive maintenance and thermal anomaly documentation
- Manufacturing quality assurance and process monitoring
Technical Specifications
| Specification | Details |
|---|---|
| Brand | FOTRIC |
| Model | TK6 |
| Detector Resolution | 384 × 288 pixels |
| Frame Rate | 30 Hz |
| Temperature Range | –20°C to 550°C |
| Thermal Sensitivity | ≤40 mK |
| Focus | Manual |
| Minimum Focus Distance | Approximately 0.15 m |
| Field of View | 25° |
| Imaging Modes | Thermal, visible light, picture-in-picture and T-DEF |
| Protection Rating | IP54 |
| Battery Capacity | 5,000 mAh |
| Product Type | Handheld infrared thermal imaging camera |
Product Advantages
The TK6 combines close-range focusing with a wide temperature-measurement range, making it suitable for detailed electronic inspection and broader facility-maintenance work. Multiple imaging modes allow visible and thermal information to be compared for faster localization and documentation of abnormal heat patterns.
Important Use Notice
This product is intended for industrial, laboratory, maintenance, research, and facility-inspection applications. It is not marketed as a clinical diagnostic device and should not be used to diagnose, treat, cure, or prevent any disease.
