Description

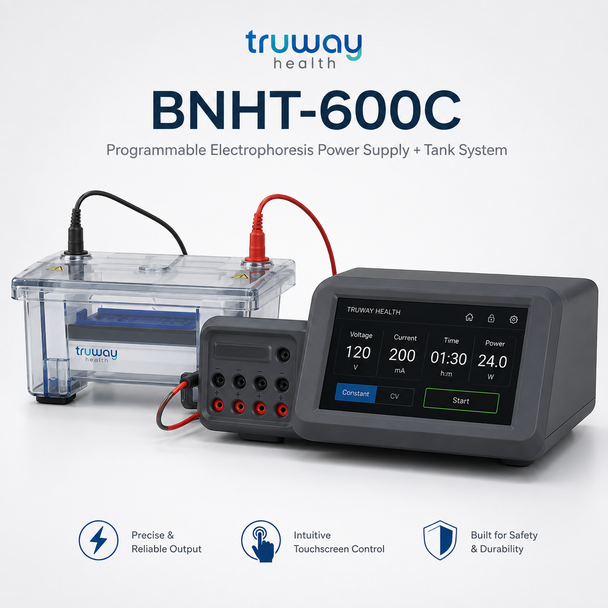

The BNHT-600C Programmable Electrophoresis Power Supply and Tank System is a professional laboratory electrophoresis platform engineered for precise, repeatable electrical control in research, biotechnology, molecular biology, academic, pharmaceutical R&D, and analytical laboratory workflows.

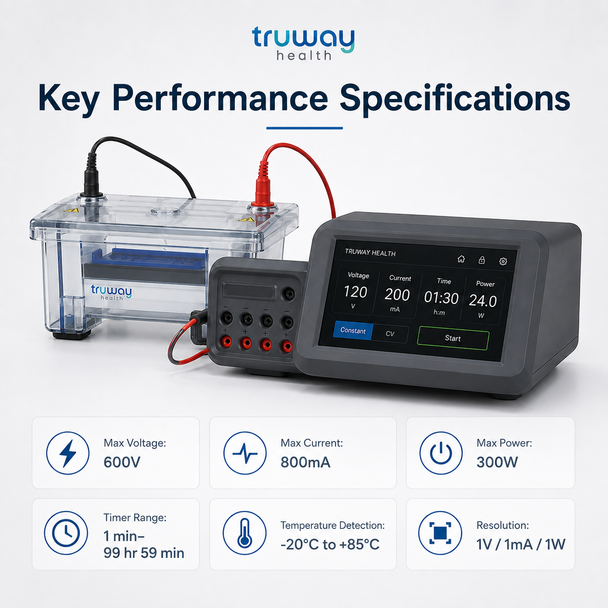

The BNHT-600C delivers up to 600V output voltage, 800mA output current, and 300W output power, with precise resolution of 1V, 1mA, and 1W. The system supports constant-voltage, constant-current, and constant-power operating modes for flexible electrophoresis protocol development.
A programmable timing system provides operation from 1 minute to 99 hours and 59 minutes, while integrated temperature detection covers -20°C to +85°C.

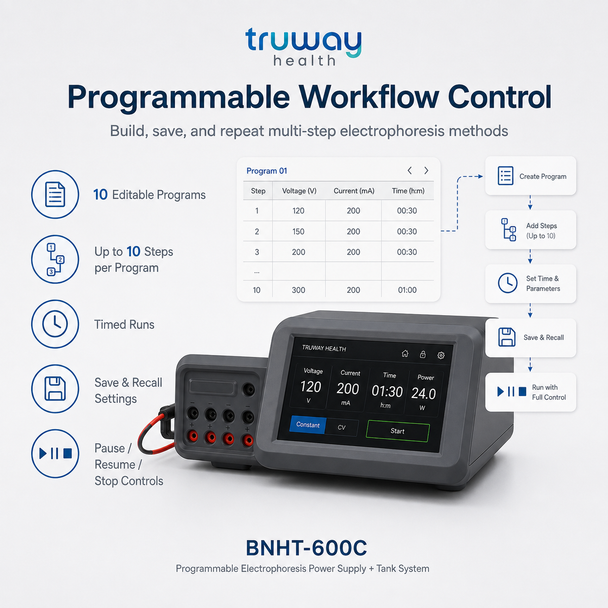

For repeatable laboratory procedures, the system can store 10 programmable methods, with each program supporting as many as 10 individual operating steps.
The touchscreen interface allows operators to configure:
- Constant voltage from 5–600V
- Constant current from 1–800mA
- Constant power from 5–300W
- Timed or continuous operation
- Multi-step programmable protocols
- Saved experimental programs
- Pause, parameter adjustment, resume, and stop functions
The manufacturer specifies that one constant-control mode is selected at a time while the system automatically manages the corresponding maximum values for the remaining parameters.
Integrated Safety & Protection
The BNHT-600C incorporates multiple protection functions designed to support dependable laboratory operation, including:
- Overcurrent protection
- Overload protection
- Over-temperature protection
- No-load protection
- Short-circuit protection
- Load-mutation protection
- Microcurrent maintenance following completion of timed operation
Operating Environment
Temperature: 0°C–40°C
Humidity: 0–90% RH, non-condensing
The unit should be operated in a dry, ventilated environment with its heat-dissipation openings unobstructed.
Package Configuration
BNHT-600C Electrophoresis Power Supply + Compatible Electrophoresis Tank
