Description
The BIOBASE BKS-Y-800 Atomizing Disinfection Robot is an autonomous mobile disinfection platform engineered to rapidly atomize compatible disinfectant solutions and automatically distribute them throughout designated indoor areas.
Designed for institutional and commercial environmental-disinfection workflows, the BKS-Y-800 combines ultrasonic atomization, autonomous route planning, obstacle avoidance, remote task control, automatic charging, and four-direction spraying within a mobile robotic platform.
The manufacturer identifies hospitals, airports, office buildings, shopping malls, schools, factories, and other public facilities as intended application environments.

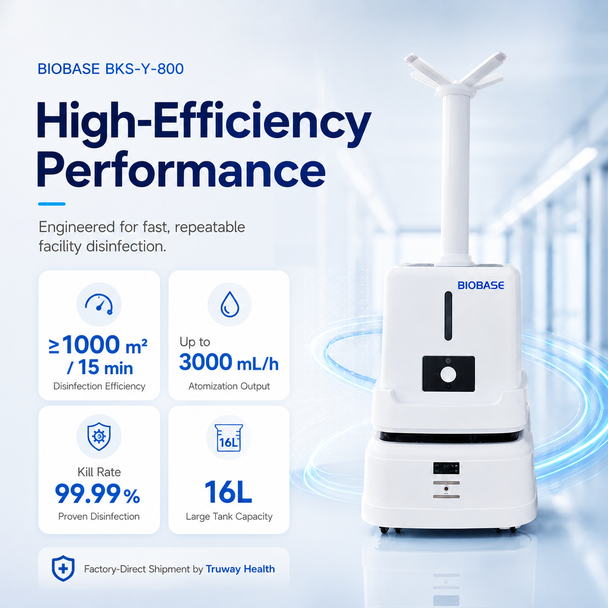

Key Features
- 360° disinfection coverage: Manufacturer specifies comprehensive, no-dead-angle disinfection with a stated kill rate of 99.99%.
- 16 L solution capacity: Large integrated reservoir supports extended disinfection operations.
- High-output atomization: Adjustable atomization output up to 3,000 mL/hour.
- Rapid area coverage: Manufacturer-rated disinfection efficiency of ≥1,000 m² per 15 minutes.

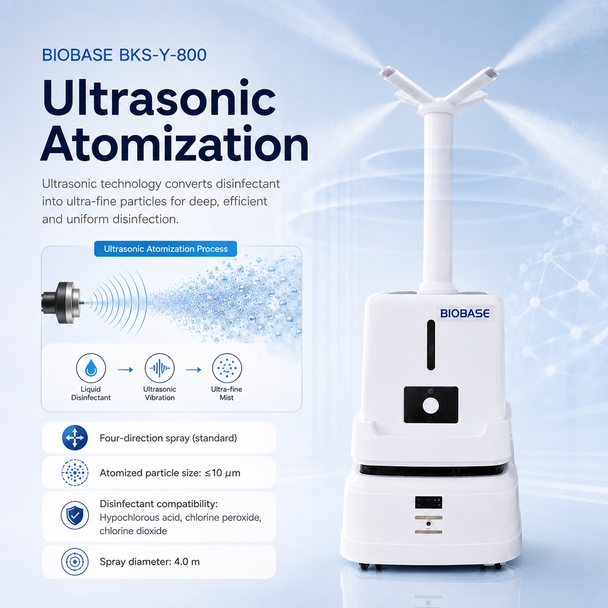

- Ultrasonic atomization: Produces atomized particles measuring ≤10 μm.
- Four-direction spray system: Standard multidirectional atomizing configuration.
- Automatic charging: Robot can respond to low-power conditions with automatic recharging.
- Low-water monitoring: Supports autonomous workflow management when solution levels become low.
- Autonomous path planning: Automatic route-cruise functionality for systematic environmental coverage.
- Intelligent obstacle avoidance: Integrated navigation supports operation around obstacles.
- Remote task control: Disinfection tasks can be controlled remotely within defined operating periods.
- Adjustable travel speed: 0.3–0.8 m/s.
- 3–6 hour operating endurance: Battery runtime varies according to operating mode.
- Universal AC input: AC 100–240 V, 50/60 Hz.
Technical Specifications
| Specification | BKS-Y-800 |
|---|---|
| Model | BKS-Y-800 |
| Disinfection Capacity | 16 L |
| Atomization Efficiency | Multi-level adjustable, up to 3,000 mL/h |
| Remote Atomization Adjustment | Yes |
| Spray Diameter | ≥4.0 m |
| Disinfection Efficiency | ≥1,000 m² / 15 min |
| Spray Method | Four-direction spray — standard |
| Disinfection Method | Ultrasonic atomization |
| Atomized Particle Size | ≤10 μm |

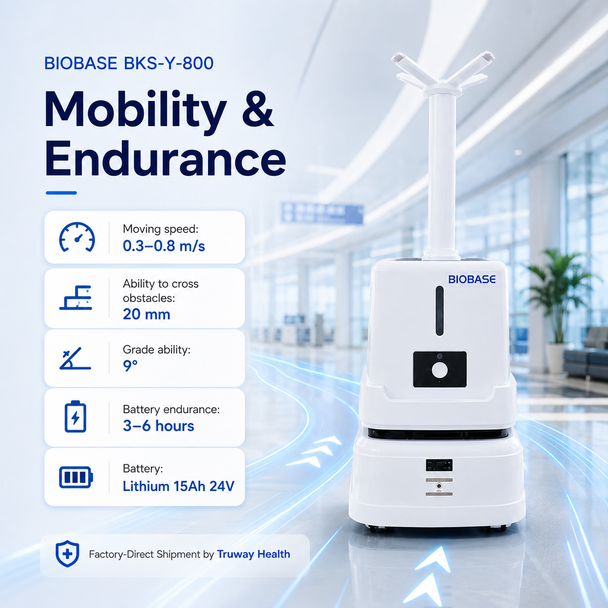

| Moving Speed | 0.3–0.8 m/s, adjustable |
| Obstacle-Crossing Ability | 20 mm |
| Grade Ability | 9° |
| Minimum Driving Channel Width | ≥700 mm |
| Battery | Lithium battery, 15 Ah / 24 V |
| Operating Endurance | 3–6 hours depending on mode |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Rated Power | 145 W |
| Overall Dimensions | 530 × 480 × 1,230 mm |
| Net Weight | 55 kg |
| Shipping / Gross Weight | 63 kg |
| Package Dimensions | 660 × 700 × 1,150 mm |
Compatible Disinfectant Types
According to the BIOBASE manufacturer literature, applicable disinfectant categories include:
- Hypochlorous acid
- Chlorine peroxide
- Chlorine dioxide
- Other compatible solutions as permitted by the equipment manufacturer and applicable facility procedures
Important: Chemical selection, dilution, handling, exposure limits, and application protocols should follow the disinfectant manufacturer's labeling, facility infection-control procedures, and applicable regulatory requirements.
Autonomous Facility Disinfection
The BKS-Y-800 is designed to combine robotic mobility with automated atomized disinfectant distribution. Its autonomous navigation system can perform planned disinfection routes while managing obstacle avoidance, operating speed, solution level, battery condition, and charging requirements.
This configuration can reduce the need for personnel to manually transport and continuously operate conventional atomizing equipment across large facilities.
Typical Applications
Suitable application environments identified by the manufacturer include:
Hospitals • Healthcare Facilities • Airports • Office Buildings • Shopping Malls • Schools • Factories • Institutional Facilities • Commercial Buildings • Public Spaces

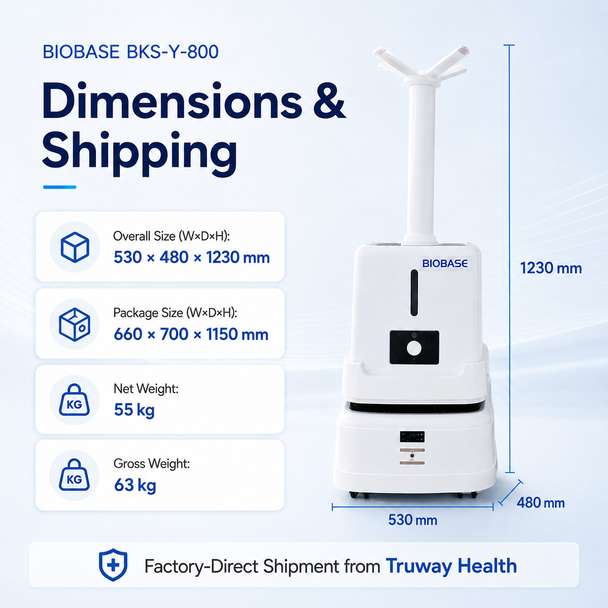

Physical & Logistics Information
Unit Dimensions: 530 × 480 × 1,230 mm
Packaging Dimensions: 660 × 700 × 1,150 mm
Net Weight: 55 kg / approximately 121 lb
Gross Shipping Weight: 63 kg / approximately 139 lb
The packaged volume is approximately 0.53 m³ per unit, making freight shipment or commercial delivery appropriate for most orders.
Factory-Direct Fulfillment
This product is supplied through Truway Health factory-direct fulfillment. Equipment is sourced for the customer's order and shipped through the applicable manufacturing and international/domestic logistics channel.
Commercial orders may be coordinated for:
- Single-unit procurement
- Multi-unit facility deployments
- Healthcare and institutional purchasing
- Government procurement
- Commercial facility projects
- Distributor and reseller requirements
- Freight-forwarder or customer-designated consignee delivery
What's Included
Standard configuration is based on the manufacturer's BKS-Y-800 factory configuration and includes the robot with its standard four-direction atomization system, integrated 16 L reservoir, lithium battery system, autonomous navigation functionality, and charging capability.
Final accessories, consumables, documentation, plug configuration, and shipment contents should be confirmed on the applicable Truway Health quotation or purchase order.
Ordering Information
Product: Atomizing Disinfection Robot
Brand: BIOBASE
Model: BKS-Y-800
MPN: BKS-Y-800
Condition: New
Truway Health Price: $127,500.00 USD / Unit
Fulfillment Method: Factory Direct
Commercial Basis: Made-to-order / procurement-on-order equipment
Truway Health Product Positioning
The BIOBASE BKS-Y-800 provides a turnkey robotic platform for organizations seeking automated, repeatable atomized environmental-disinfection coverage across large indoor facilities. Its combination of a 16 L reservoir, ≥1,000 m²/15-minute manufacturer-rated coverage, autonomous navigation, automatic charging, remote control, and 3–6 hour endurance makes it well suited to structured institutional disinfection programs.
