Description
High-Frequency Handheld Dental Radiography System | 70 kV | 2 mA | Rechargeable

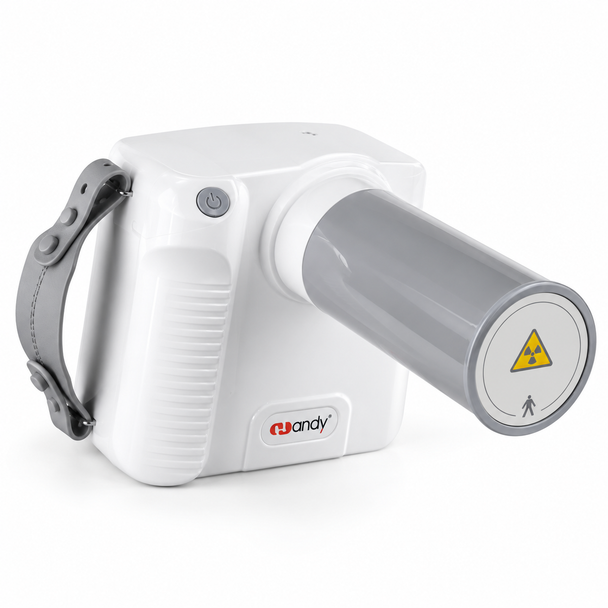

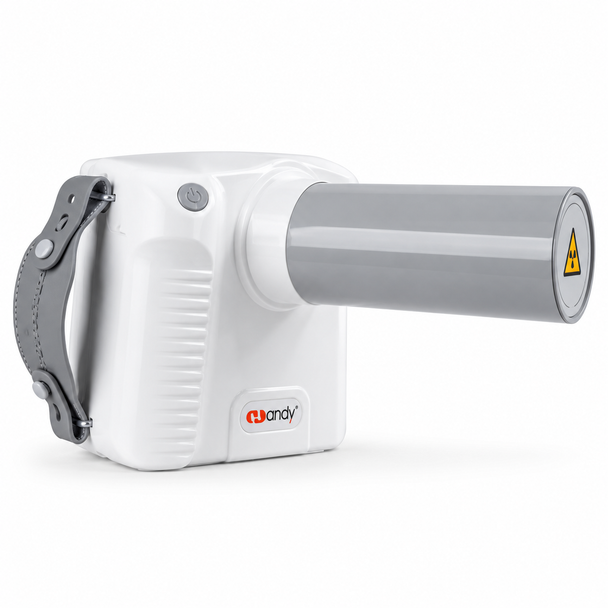

The Andy HDR Series / Hyanwa RAY98(P) Portable Dental X-Ray Machine is a compact, high-frequency dental radiography generator engineered for professional intraoral diagnostic imaging. Its handheld design combines a rechargeable power system, digital control interface, adjustable exposure settings, and ergonomic construction to support dental imaging in appropriately equipped clinical environments.
Designed to work with compatible intraoral image receptors, including digital RVG sensors, phosphor plates, and conventional dental X-ray film, the RAY98(P) provides a portable X-ray source for diagnostic examinations of teeth and associated oral structures.
Key Features
-
70 kV X-Ray Generator: Nominal 70 kV tube voltage and 2 mA tube current for dental radiographic applications.
-
0.4 mm Focal Spot: Small focal spot designed to support detailed intraoral image acquisition.
-
High-Frequency Technology: Compact generator technology for dental imaging.
-
Digital Control Display: Integrated interface for selecting operating modes, tooth-region presets, and exposure settings.
-
Adjustable Exposure Timer: Manufacturer-specified exposure range of 0.04–2.0 seconds.
-
Rechargeable Battery Operation: Portable power system for clinical mobility.
-
Ergonomic Handheld Housing: Integrated grip and carrying strap for controlled handling.
-
Multiple Receptor Options: Compatible with appropriate digital intraoral sensors, phosphor plates, and dental film.
-
Compact Construction: Approximately 1.7 kg net equipment weight.
Professional Applications
Suitable for appropriately authorized dental facilities performing clinically indicated intraoral radiographic studies, including:
-
Periapical radiography
-
Bitewing examinations
-
Selected intraoral occlusal imaging
-
Dental treatment planning and follow-up
-
Dental assessments involving patients with limited mobility
Technical Specifications
| Specification | Details |
|---|---|
| Product type | Portable dental X-ray generator |
| Model | RAY98(P) |
| Source assembly | RAY98(P)-01 |
| Nominal tube voltage | 70 kV |
| Nominal tube current | 2 mA |
| Focal spot | 0.4 mm |
| Anode angle | 12.5° |
| Exposure range | 0.04–2.0 seconds |
| Charger input | 100–240 V AC, 50/60 Hz |
| Battery label | 10.8 V, 2,500 mAh |
| Equipment net weight | Approximately 1.7 kg |
| Imaging | Intraoral radiography |
| Display | Digital control interface |
| Receptor compatibility | Dental film, PSP plates, compatible digital sensors |
| Unit configuration | Handheld, rechargeable |
| Intended users | Authorized, trained dental professionals |
Important Safety and Use Information
Professional use only. Prescription device.
This equipment emits ionizing radiation and must be installed, inspected, registered, maintained, and operated in compliance with applicable federal, state, and local radiation-control requirements.
Use only with the manufacturer-specified radiation-protection accessories and approved operating protocols. Operator training and equipment acceptance testing are required before clinical use.
Digital imaging sensors, phosphor plates, computer equipment, and other accessories are not included unless expressly identified in the selected package configuration.
Package Configuration
-
1 × Portable Dental X-Ray Generator
-
Integrated control interface
-
Attached handling strap
-
Protective packaging
Additional accessories, charging equipment, shield configuration, and documentation are subject to the confirmed manufacturer packing list.
Sold and distributed by Truway Health, Inc.
